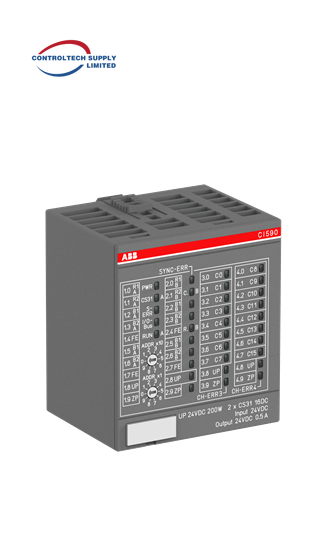

ABB 1SAP221100R0001 CI590-CS31-HA S500 Interface Module

General Information

• Extended Product Type: CI590-CS31-HA
• Product ID: 1SAP221100R0001
• ABB Type Designation: CI590-CS31-HA
• EAN: 4016779672375
• Catalog Description: Interface module. CS31 slave. Media redundant. 16 configurable DI/DO: 24VDC 0.5A (CI590-CS31-HA)
• Long Description: CI590-CS31-HA: S500 Interface module. CS31 slave. Media redundant. 16 configurable DI/DO: 24VDC 0.5A. Extendable by up to 7 I/O modules.
• Country of Origin: Germany (DE), Finland (FI)
• CN8: 85389091
• Invoice Description: Interface module. CS31 slave. Media redundant. 16 configurable DI/DO: 24VDC 0.5A (CI590-CS31-HA)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: piece

Dimensions

• Product Net Weight: 0.119 kg
• Product Net Depth / Length: 62 mm
• Product Net Height: 76 mm
• Product Net Width: 67.5 mm
• Gross Weight: 0.144 kg
• Package Level 1 Depth / Length: 84 mm
• Package Level 1 Height: 72 mm
• Package Level 1 Width: 71 mm
• Package Level 1 Units: 1 carton

Technical

• Function: CS31 slave. Media redundant. 16 configurable DI/DO: 24VDC 0.5A
• Number of Hardware Interfaces:
  • Industrial Ethernet: 0
  • Other: 0
  • Parallel: 0
  • RS-232: 0
  • RS-422: 0
  • RS-485: 0
  • Serial TTY: 0
  • USB: 0
  • Wireless: 0
• Analog Inputs: 0
• Analog Outputs: 0
• Number of Digital Inputs: 0
• Number of Digital Outputs: 0
• Number of Digital Configurable I/Os: 16
• Input Voltage Type: DC
• Input Voltage (Uin): 24 V DC
• Input Current: 5 mA
• Delay Time (τ): 0.1 … 32 ms
• Output: Transistor
• Output Voltage Type: DC
• Output Current: 0.5 A
• Output Voltage Maximum: 20.4 … 28.8 V
• Degree of Protection: IP20
• Supply Voltage: 20.4 ... 28.8 V DC

Additional Information

• Product Main Type: CI590
• Product Name: Distributed Automation I/Os

Classifications

• eClass: 27-24-26-07
• EPLAN Catalog Tree: Electrical engineering / PLC / General
• ETIM 8: EC001604 - Fieldbus, decentr. periphery - communication module
• UNSPSC: 32151705

Environmental

• SCIP: 184f0a04-e2bd-432f-ba25-77450353bacd Germany (DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
