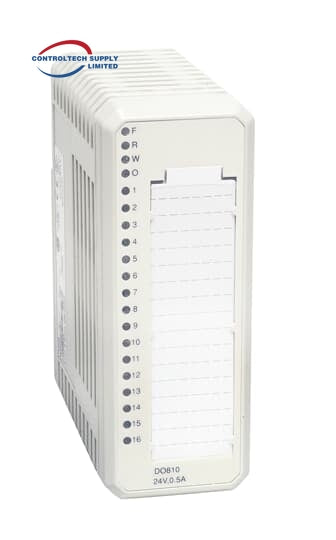

ABB 3BSE008510R1 DO810 Digital Output 24V 16 ch

General Info

• Article number: 3BSE008510R1

• Type: Digital Output

• Signal specification: 24V d.c. (12 - 32 V d.c.), 0.5 A

• Number of channels: 16

• Signal type: Current sourcing, current limiting

• HART: No

• SOE: No

• Redundancy: No

• High integrity: No

• Intrinsic safety: No

• Mechanics: S800

Detailed Data

• Isolation: Groupwise isolated from ground

• Output load: < 0.4 Ω

• Current limiting: Short circuit proof current limited output

• Maximum field cable length: 600 meters (656 yards)

• Rated insulation voltage: 50 V

• Dielectric test voltage: 500 V a.c.

• Power dissipation: Typ. 2.1 W

• Current consumption +5 V Modulebus: 80 mA

Dimensions

• Width: 45 mm (1.77”)

• Depth: 102 mm (4.01”), 111 mm (4.37”) including connector

• Height: 119 mm (4.7”)

• Weight: 0.18 kg (0.4 lbs.)
