Bachmann
Bachmann AIO288/1 8 channels Analog Input/Output Modules
Bachmann AIO288/1 8 channels Analog Input/Output Modules
Product Type: Analog Input/Output Modules
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months

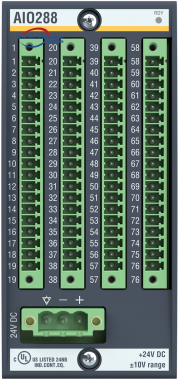

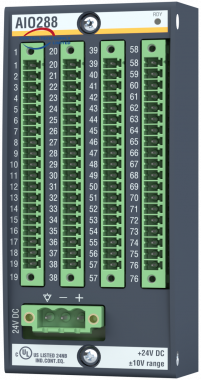

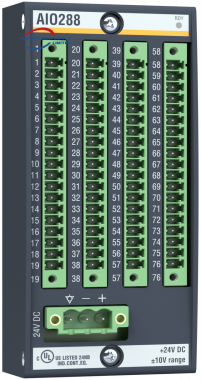

The analog input/output module AIO288/1 offers 8 analog input channels as well as 8 analog output channels.
Specifications:
-
Analog Inputs:
- 8 channels
- Input Range: ±10V
- Input Accuracy: ±1V
- Input Current: 20mA
- Temperature Sensor Inputs: 4 channels for Pt100/1000 sensors
- Resolution: 14-bit
- Accuracy: 0.1%
- Sample Time: 200µs
-
Analog Outputs:
- 8 channels
- Output Range: ±10V
-
Potentiometer Supply:
- 4 channels for powering potentiometers
-
Isolation:
- NOT isolated
Features
- 8 analog inputs
- 8 analog outputs
- Connection possibility single-ended or differential
- Power supply for up to 4 potentiometers
- Temperature inputs for up to 4 Pt100/Pt1000 sensors
- 2-wire or 4-wire inputs for Pt100/Pt1000 sensors
- Wire break detection for the inputs (for voltage and temperature)
- Short circuit proof outputs
- Overload detection for potentiometer power supplies
- Monitoring of the external supply voltage
