Bently Nevada 3500 Series Monitor System

The Bently Nevada 3500 System is designed for continuous online monitoring in machinery protection applications, aligning with the American Petroleum Institute's API 670 standard. This modular rack-based system comprises the following components:

Bently Nevada 3500 Series Monitor System
  • 3500/05 Instrument Rack (required)
  • One or two 3500/15 Power Supplies (required)

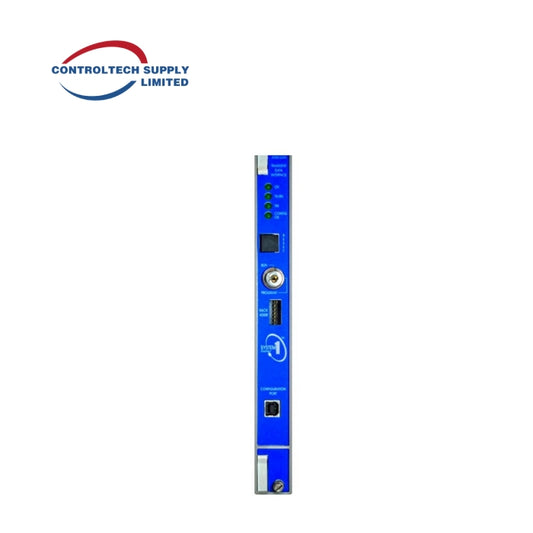

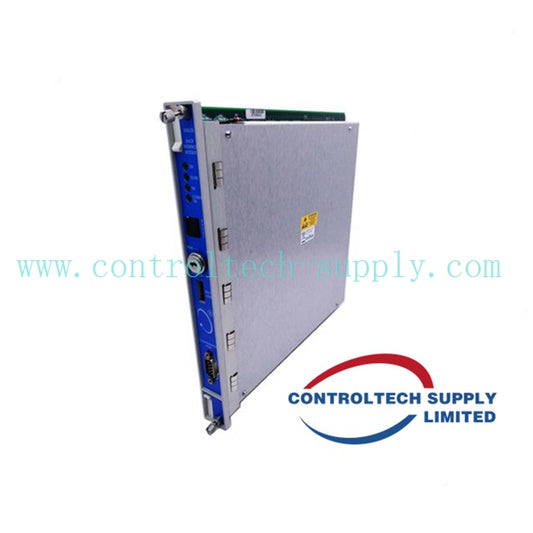

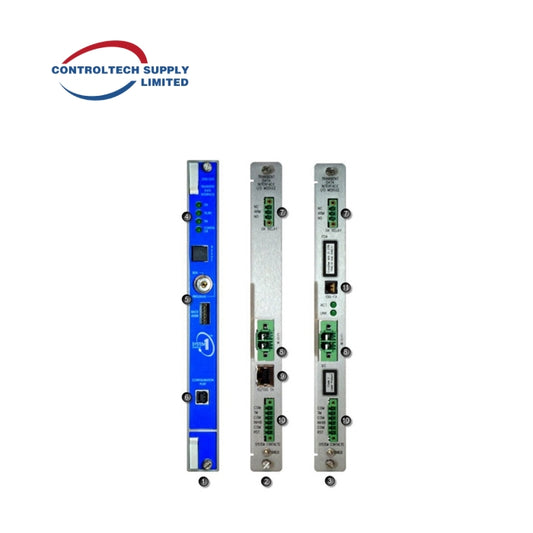

  • 3500/22M Transient Data Interface (TDI) Module (required)
  • One or more 3500/XX Monitor Modules (required)
  • Optional: One or more 3500/32M (4-channel) or 3500/33 (16-channel) Relay Modules

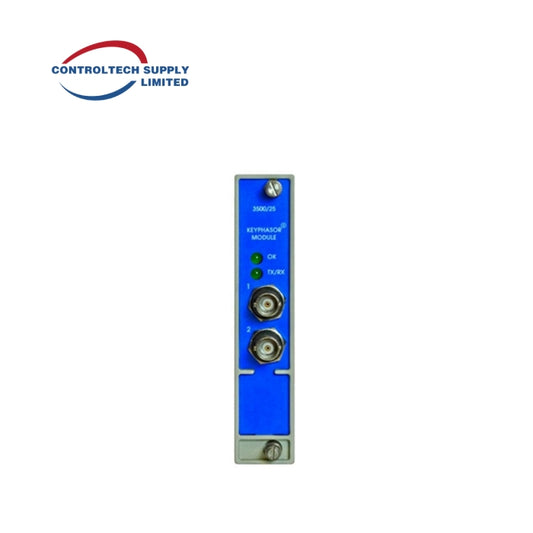

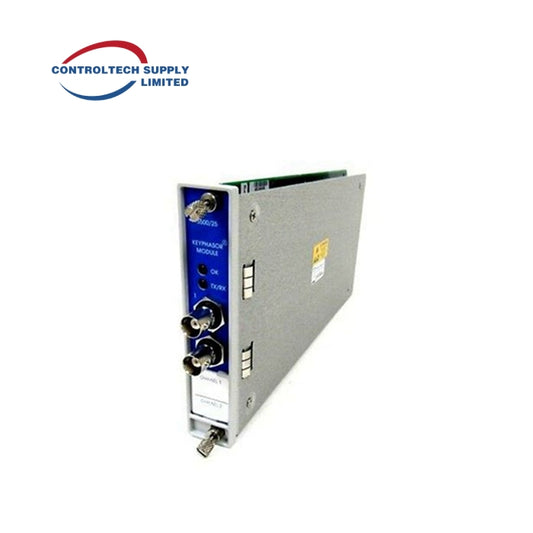

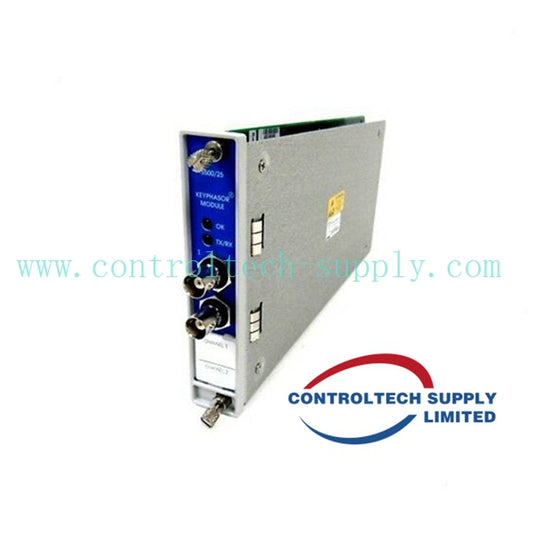

  • Optional: One or two 3500/25 Keyphasor* Modules
  • Optional: One or more 3500/92 Communication Gateway Modules

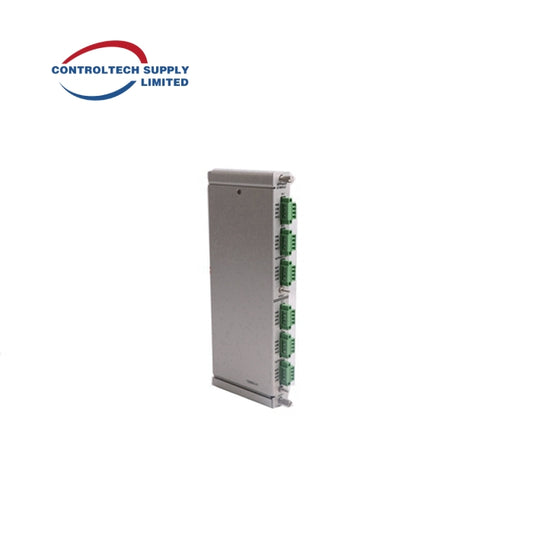

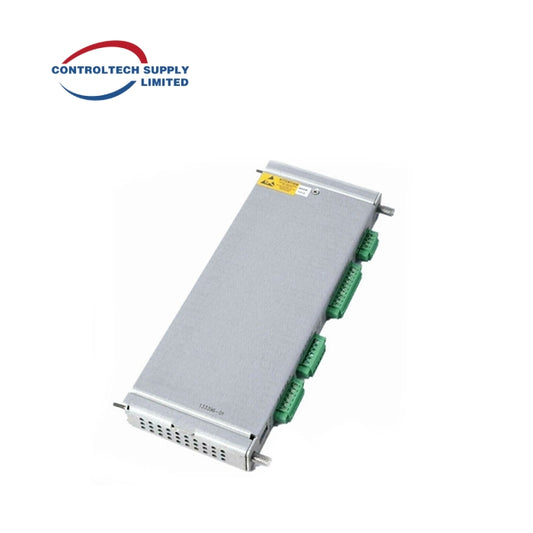

  • Input/Output (I/O) Modules (required)
  • Optional: 3500/94M VGA Display
  • Optional: Internal or external intrinsic safety barriers or galvanic isolators for hazardous area installations
  • 3500 System Configuration Software (required)

Detailed descriptions of system components are available in their respective Bently Nevada 3500 Series Monitor System datasheets.
