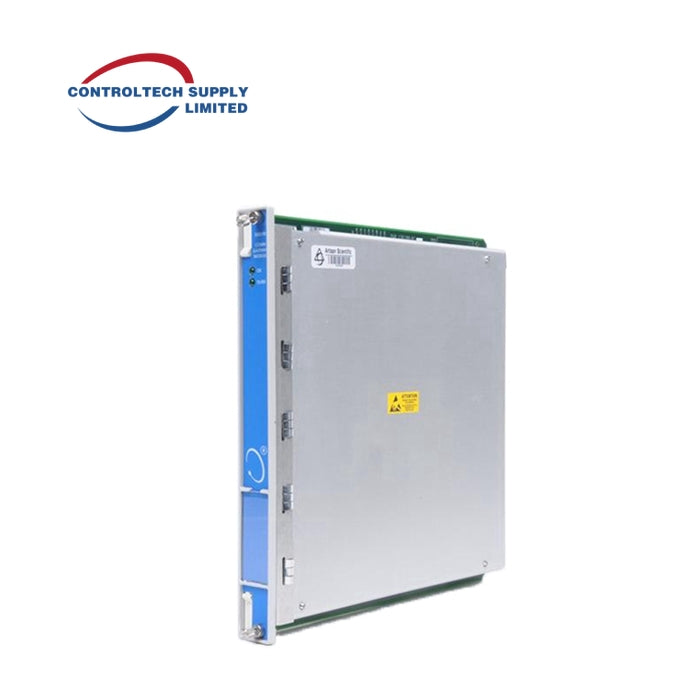

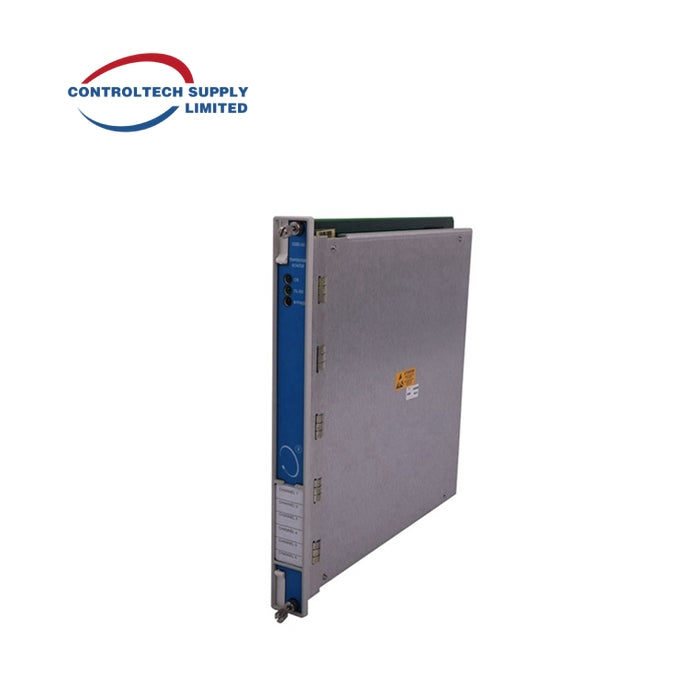

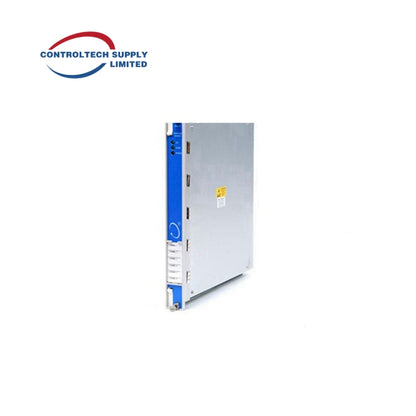

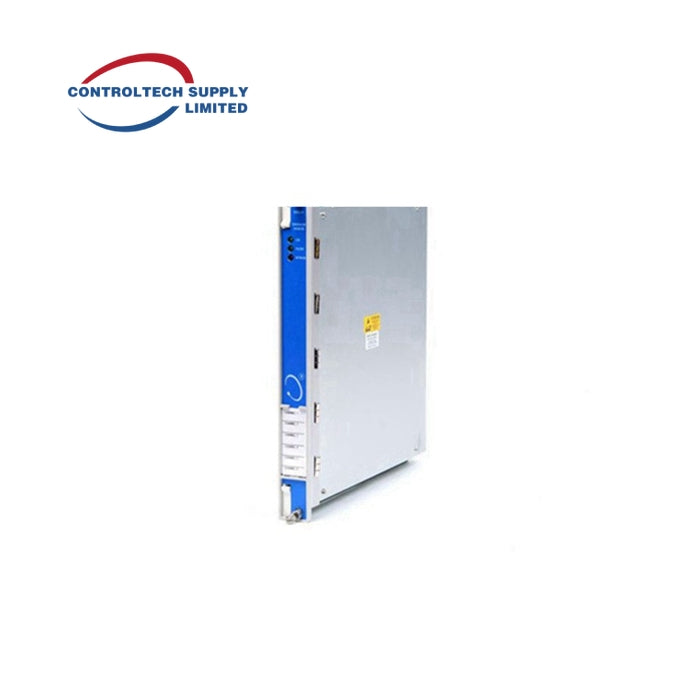

Bently Nevada 3500/94 VGA Display

Bently Nevada 3500/94 VGA Display

Description

• Components:
  1. 3500/94 VGA Module and I/O Card
  2. VGA Display Monitor (can be mounted up to 8 m / 25 ft from the rack with standard cabling).
• Functionality: Displays all 3500 Machinery Protection System information, including:
  • System Event List
  • Alarm Event List
  • All module and channel data
  • 3300 style rack view (API-670)
  • Current alarm data (quick view)
  • Nine custom display options

Specifications

3500/94 VGA Display Unit

• Inputs:

  • Power Consumption: 4.6 watts max
  • High-speed Network: Monitors status, data, and values
  • RS232 Port (I/O): Touch controller data

• Outputs:

  • OK LED: Indicates proper operation of the module
  • TX/RX LED: Indicates communications between other system modules
  • VGA Port (I/O): Outputs analog red, green, blue, and sync signals to the display

• Environmental Limits:

  • Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
  • Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
  • Humidity: 95%, noncondensing

3500/94 Display Router Box

• Inputs:

  • Power +24VDC ± 6%: 4.7 watts max
  • Input Range: 22.5 to 25.5 VDC
  • VGA Inputs (4): Video image
  • RS232 Inputs (4): Touch controller data

• Outputs:

  • OK Status LED: Indicates proper operation
  • VGA Output (1): Video image
  • RS232 Output (1): Touch control data
