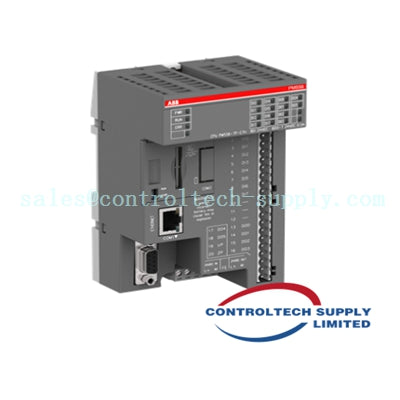

ABB PM556-TP-ETH 1SAP121200R0071 Programmable Logic Controller

General Information

• Extended Product Type: PM556-TP-ETH

• Product ID: 1SAP121200R0071

• ABB Type Designation: PM556-TP-ETH

• EAN: 4016779927567

• Catalog Description: PM556-TP-ETH: AC500, Programmable Logic Controller

• Long Description: PM556-TP-ETH: AC500, Programmable Logic Controller, 512kB, 8DI/6DO-T, ETH, 24VDC, 1xRS485, 2xOption Slot

Dimensions

• Product Net Weight: 0.28 kg

• Product Net Depth / Length: 74 mm

• Product Net Height: 135 mm

• Product Net Width: 82 mm

• Gross Weight: 0.446 kg

Technical

• Number of Hardware Interfaces:

• Industrial Ethernet: 1

• Other: 0

• Parallel: 0

• RS-232: 0

• RS-422: 0

• RS-485: 1

• Serial TTY: 0

• USB: 0

• Wireless: 0

• Memory Size: 642 kB

• Memory Type User Data: RAM

• Controller Processing Time: 0.00008 ms

• Number of Digital Inputs: 8

• Number of Digital Outputs: 6

• Number of Digital Configurable I/Os: 0

• Input Voltage Type: DC

• Rated Voltage (Ur): 24 V DC

• Supply Voltage: 20.4 … 28.8 V DC
