ABB SM500F Field-Mountable Videographic Recorder

Overview

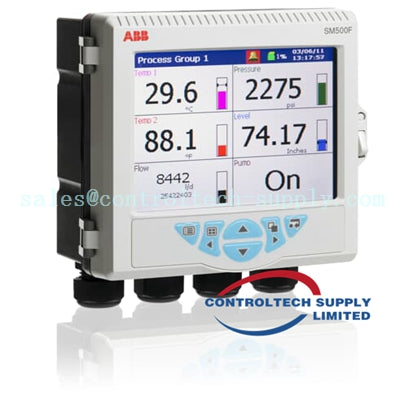

The SM500F is a field-mountable videographic recorder designed with a unique enclosure that allows for wall, pipe, or panel mounting. It provides clear process data visualization through multiple display formats, including chart, bar graph, and digital indicators. Additionally, the device securely logs process data onto a removable memory card, while Ethernet communication enables remote monitoring and data access.

Environmental

• Operating temperature range: –10 to 50 °C (14 to 122 °F)

• Operating humidity range: 5 to 95 %RH (non-condensing)

• Storage temperature range: –20 to 70 °C (–4 to 174 °F)

• Enclosure sealing: IP66 and NEMA 4X (compliant with NEMA 4X hosedown test)

Physical

• Size: 144 mm (5.7 in.) x 144 mm (5.7 in.) x 84 mm (3.3 in.)

• Weight: 1.0 kg (2.2 lb) approx. (unpacked)

• Panel cutout: 138 mm (5.43 in.) x 138 mm (5.43 in.) x 67 mm (2.7 in.) behind panel

• Case material: Glass-filled polycarbonate

• Operator keypad: Tactile membrane keys

• No. of keys: 6

• Cable gland entries: 4 x 22.2 mm (0.87 in.) o.d. entries for 1/2 in. NPT glands
