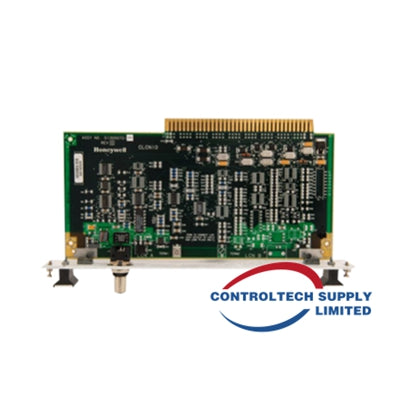

Honeywell 05704-A-0145 Four Channel Control Card

Product Description

Honeywell 05704-A-0145 is a Four Channel Control Card designed for Distributed Control Systems (DCS). It provides precise analog input processing, making it ideal for industrial automation and process control applications. This module ensures high accuracy and reliable performance in demanding environments2.

Technical Specifications

• Model Number: 05704-A-0145

• Type: Analog Input Module

• Input Channels: 4 channels for 4-20mA current signals

• Input Impedance: 250 ohms

• Accuracy: ±0.25% of full scale

• Resolution: 12-bit

• Power Requirements: 24 VDC

• Communication Interface: Proprietary DCS backplane

• Operating Temperature: 0°C to 55°C

• Humidity Range: 5% to 95%

• Isolation Breakdown Voltage: ±50V DC

• Dimensions: 132 mm x 25 mm x 172 mm

• Weight: 170 g
