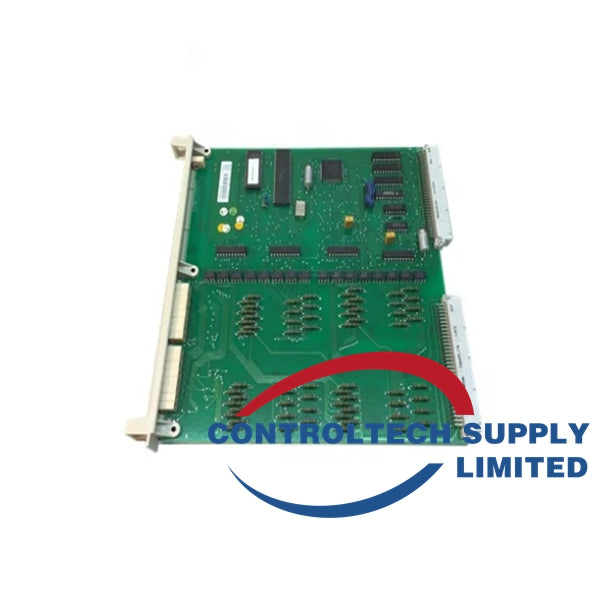

ABB 88TK05C-E GJR2393200R1210 Bus Coupling Module

Description

The ABB 88TK05C-E GJR2393200R1210 is a bus coupling module designed for industrial automation applications. It plays a crucial role in remote bus coupling, station communication, and protocol management, ensuring seamless data exchange within a control system.

Key features include:

• Remote bus coupling for efficient communication

• Control of the station protocol to maintain network stability

• Configurable module, station, and system addresses for flexible deployment

• RS485 interface for robust data transmission

• Module data interface to facilitate seamless integration

• Monitoring interface to track system performance

• Dual-channel station-bus coupling for enhanced reliability

• Diagnosis and annunciation functions for real-time system status alerts

Technical Highlights

• Power Supply:

• Operating voltage: 24 V ± 25%

• Current consumption: 166 mA (approx.)

• Typical power dissipation: 4 W

• Monitoring Interface:

• Ue = 24 V, UM = 24 V

• Ue = 24 V, Ie = 5 mA

• Ue = 24 V, Ie = 5 mA

• Closed-circuit principle

• Ie = 5 mA, Ue = 24 V

• G12 – Disturbance of cabinet voltage supply

• G22 – Thermostat responded

• G32 – Cabinet door open

• UM – Annunciation voltage

• Output Values:

• Ia = 6 mA, Ua = 24 V

• MST – General station disturbance
