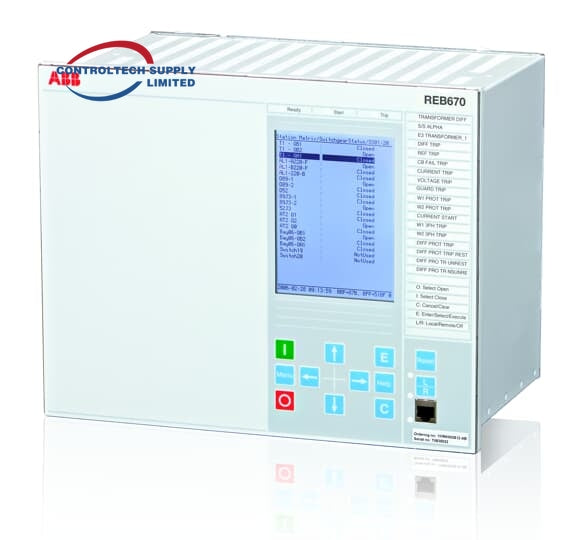

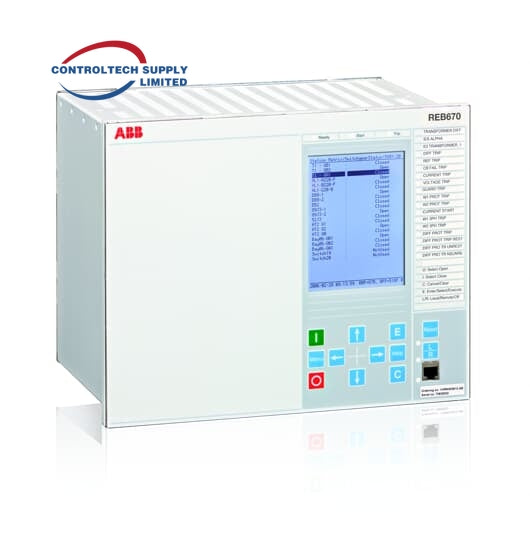

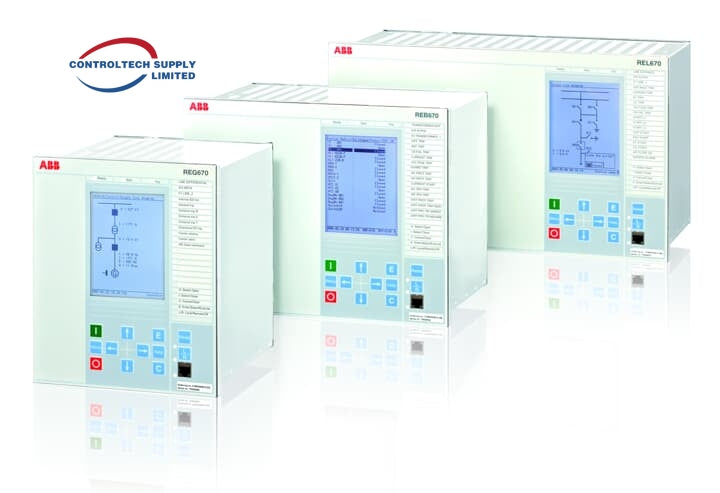

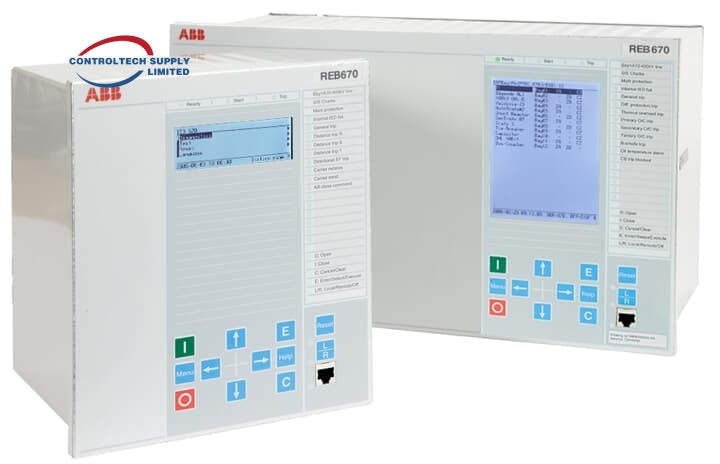

ABB Busbar Protection REB670 Relion® 670 Series

The ABB REB670 IED (Intelligent Electronic Device) features excellent application flexibility. It is designed for the protection and monitoring of busbars, T-connections and meshed corners from medium to extra high voltage levels. Due to its extensive I/O capability, REB670 protects single and double busbars with or without transfer bus, double circuit breaker or one-and-half circuit breaker
arrangements.

Features

• Fully IEC 61850 compliant
• Integrated monitoring and protection in a single IED
• Comprehensive self-supervision, including analog channels
• Six independent parameter setting groups
• Signal matrix for easy configuration of binary and analog signals
• Ethernet interface for fast PC communication
• Built-in HMI for real-time visualization of bay-to-zone connections and primary switchgear status
• Pre-configured and type-tested solutions for various arrangements, including single busbar, one-and-a-half breaker, double breaker, and double busbar-single breaker configurations
• User management and authority handling

Most Important Protection Features

• Two busbar differential protection zones
  • Sensitive differential protection level
  • Automatic detection and selective busbar protection blocking for CT secondary circuit issues
  • Extremely fast operation
  • Full stability for all external faults
  • Correct operation for all types of evolving faults
• Overall check zone
• Integrated, software-driven zone selection (i.e., disconnector replica)
• Breaker failure protection
• Selective tripping for busbar and breaker failure protection
• Four-step, non-directional, phase overcurrent protection with definite and inverse time characteristics
• Autoreclosing function for busbar restoration after IED operation
• Configurable logic blocks
• Summation principle with additional auxiliary CTs

Monitoring

• Disturbance recorder
  • 100 disturbances
  • 40 analog channels (30 physical and 10 derived)
  • 96 binary channels
• Event list with 1000 events
• Disturbance report
• Event and trip value recorders
• Event counters
• Supervision of AC and mA input quantities
• Small and large HMI available in local language
• LED indications with 6 red and 9 yellow LEDs

Control Functions

• Versatile switch with two positions
• Selector switch with up to 32 positions

Measurements

• Currents in all bays, including differential currents and busbar through-going currents
• AC input quantities with accuracy better than 0.5%

Metering

• Support for pulse counting in energy metering

Communication

• IEC 61850-8-1, including GOOSE messaging
• Individually supervised redundant station bus with zero seconds of recovery time
• IEC 60870-5-103
• DNP 3.0 slave protocol
• LON
• SPA
• Remote end communication for transferring up to 192 binary signals

Setting, Configuration, and Disturbance Handling

• Protection and Control IED Manager PCM 600

Hardware

• 1/1 x 19”, 3/4 x 19”, or 1/2 x 19” 6U height case (selected based on the required I/O modules)
• Power supply modules from 24 to 250 V DC ± 20%
• ADM module
• Up to 11 I/O modules in 1/1 x 19” case
• Binary input module, 30 mA and 50 mA, with 16 inputs
• Binary output module with 24 outputs
• Static binary output module with 12 outputs (6 static)
• Binary input/output module, 30 mA and 50 mA, with 8 inputs and 12 outputs
• Accurate time-synchronization through GTM, GPS time module, IRIG-B-module, SNTP, and DNP 3.0
• Remote end data communication modules for C37.94, X.21, and G.703/G.703E1
• COMBITEST test switch module

Technical details are available in the REB670 Product Guide.
