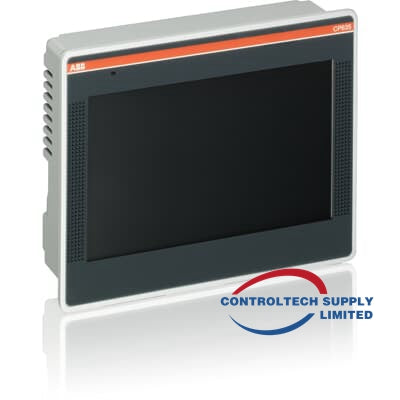

ABB CP635 1SAP535100R0001 Control Panel 7" TFT Touch Screen

ABB CP635 1SAP535100R0001 Control Panel 7" TFT Touch Screen

Brand: ABB
Product Type: Control Panel 7" TFT Touch Screen
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months

General Information

  • Extended Product Type: CP635
  • Product ID: 1SAP535100R0001
  • ABB Type Designation: CP635
  • EAN: 4016779864909
  • Catalog Description: CP635 Control Panel 7" TFT touch screen
  • Long Description: CP635 Control Panel 7" TFT touch screen, 64 K colors, 800 x 480 pixel, PB610 runtime license

Additional Information

  • Ambient Air Temperature:
    • Operation: 0 ... +50 °C
    • Storage: -20 ... +70 °C
  • CN8: 85371091
  • Communication Interface:
    • 2x Ethernet 100 MBit
    • 1x RS232/422/485
    • 2x USB 2.0 Host
    • 1x SD card slot
    • 2x Expansion slot
  • Country of Origin: Italy (IT), Germany (DE), Finland (FI)
  • Customs Tariff Number: 85371091
  • Declaration of Conformity - C-Tick: C-Tick Declaration for CP620(-WEB), CP630(-WEB), CP635(-WEB), CP650(-WEB), CP660(-WEB), CP675(-WEB)
  • Declaration of Conformity - KCC: EMC standards for industrial devices regulated by the Korea Communications Commission (KCC)
  • Degree of Protection:
    • Front: IP66
    • Housing: IP20
  • Frame Size: Undefined
  • Gross Weight: 1.2 kg
  • Housing Material:
    • Front side: Zamak
    • Reverse side: Aluminium
  • Invoice Description: CP635 Control Panel 7" TFT touch screen
  • Made To Order: No
  • Maximum Order Quantity: 0 piece
  • Memory Size User Data: 128 MB
  • Memory Size User Program: 256 MB
  • Memory Type User Data: Flash Disk
  • Memory Type User Program: DDR RAM
  • Minimum Order Quantity: 1 piece
  • Mounting Type: Front face
  • Order Multiple: 1 piece
  • Package Level 1 Dimensions:
    • Depth / Length: 280 mm
    • Height: 120 mm
    • Width: 210 mm
  • Power Consumption: 16.8 W
  • Power Supply: 24 (18 ... 30) V DC
  • Product Main Type: CP635
  • Product Name: Control Panels
  • Product Net Dimensions:
    • Depth / Length: 51 mm
    • Height: 147 mm
    • Width: 187 mm
  • Product Net Weight: 0.76 kg
  • Product Type: PLC-CP600
  • Programming Software: PB610 Panel Builder 600
  • Quote Only: No
  • Real-time Clock: Hardware clock, battery back-up
  • SCIP: 5b70c5e1-98a2-4f22-9ad2-d8445ecf8732 Germany (DE)
  • Screen Color: 64k colors
  • Screen Resolution: 800 x 480 pixel
  • Screen Size: 16:9 wide screen, 7 in
  • Screen Type: TFT color, LED backlight, touch screen
  • Security: Password protection with 8 user levels
  • Selling Unit of Measure: piece
  • Serial Port 1 Type: RS232/RS422/RS485
  • Service Life: 40,000 hours
  • Short Description: CP635 Control Panel 7" TFT touch screen
  • Stocked At (Warehouses): Menden, Germany; Singapore; Hangzhou, China; Bairro Santo Antonio, Brazil
