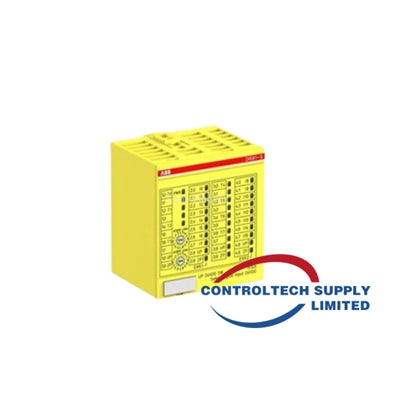

ABB DI581-S 1SAP284000R0001 Ddigital Input Module

General Information

• Extended Product Type: DI581-S

• Product ID: 1SAP284000R0001

• ABB Type Designation: DI581-S

• EAN: 4016779681797

• Catalog Description: Digital input module. Safety. 16SDI, 16SDI SIL2/ 8SDI SIL3, 24VDC, 1-wire, 8 pulse output (DI581-S)

• Long Description: DI581-S: S500-S Digital input module. Safety. 16SDI, 16SDI SIL2/ 8SDI SIL3, 24VDC, 1-wire, 8 pulse output.

Dimensions

• Product Net Weight: 0.122 kg

• Product Net Depth / Length: 62 mm

• Product Net Height: 76 mm

• Product Net Width: 67.5 mm

• Gross Weight: 0.151 kg

• Package Level 1 Depth / Length: 84 mm

• Package Level 1 Height: 72 mm

• Package Level 1 Width: 71 mm

• Package Level 1 Units: 1 carton

Technical

• Function: Safety. 16SDI, 16SDI SIL2/ 8SDI SIL3, 24VDC, 1-wire, 8 pulse output

• Number of Digital Inputs: 16

• Number of Digital Configurable I/Os: 0

• Input Voltage Type: DC

• Input Current: 7 mA

• Maximum Input Voltage: 0 ... 30 V

• Delay Time (τ): 1 … 500 ms

• Degree of Protection: IP20

• Safety Integrity Level (SIL): 2
