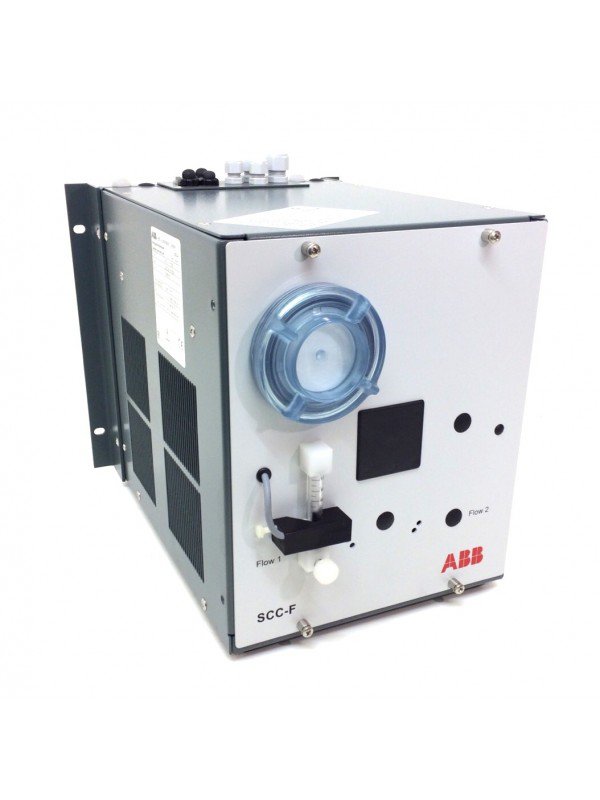

ABB SCC-F 31004G9B Gas Feed Unit

Description

The SCC-F gas feed unit is designed to transport sample gas to the analyzer while independently controlling flow and condensate through two separate gas paths. This unit features a digital communication port that connects to the controller board of Advance Optima analyzers, enabling the integration of status and alarm signals from the sample handling system.

General Specifications

• Compact Surface Mounting Case: Dimensions (W x H x D) 1/2 19", 6 HU (266 mm x 302 mm)

• Mounting Options: Mounting brackets for 19" plug-in units or wall mounting

• Independent Gas Paths: 2 gas paths, with or without a condensate pump

• Corrosion-Proof, Metal-Free Gas Line: Ensures durability and reliability in various conditions

• Integrated Switching Amplifier: Flow and condensate control amplifier included in the case

• Temperature Range: Sample gas inlet temperature from +10 to +50 °C

• Degree of Protection: IP20 - EN 60529 for protection against solid objects greater than 12 mm and limited ingress of dust

• Detailed Information: For more specific details, please refer to the product datasheet.
