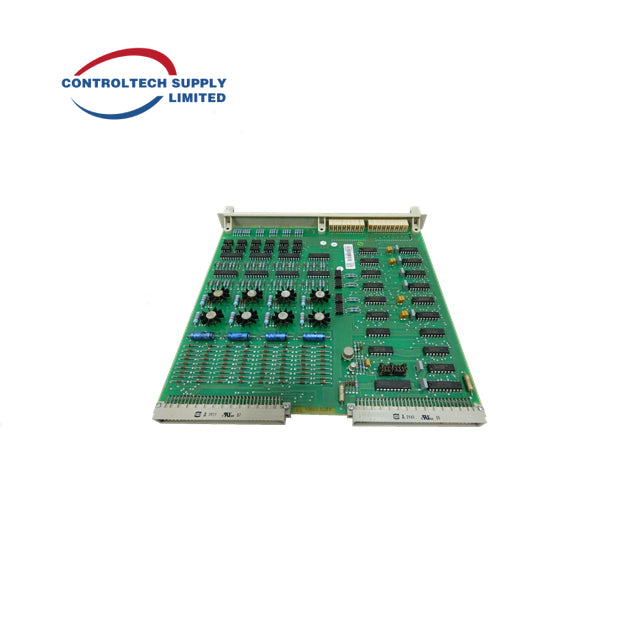

ABB YPG 109A YT204001-CE Analog Input Module

Description

The ABB YPG 109A (YT204001-CE) is an advanced control board designed to process and manage analog input signals in industrial automation systems. This module offers reliable performance in various industrial settings, where precise analog signal processing is required for system control and monitoring.

Key Features

• Analog Input Channels: Supports multiple analog input channels for precise signal measurement and processing.

• Input Range: Configurable input range for different analog signals, typically 0-10 V or 4-20 mA.

• Signal Conversion: High-precision analog-to-digital conversion for accurate signal processing.

• Industrial Integration: Designed for seamless integration into ABB’s industrial automation systems, ensuring compatibility and ease of use in various applications.

Technical Specifications

• Input Voltage Range: 0-10 V (default), adjustable as needed

• Input Current Range: 4-20 mA

• Resolution: 16-bit resolution for high accuracy in signal conversion

• Sampling Rate: Typically 1 kHz, adjustable depending on the application

• Accuracy: ±0.1% of full-scale input range

• Power Supply: 24 V DC ± 20%

• Operating Temperature: -20°C to +60°C

• Mounting Type: DIN rail mount for easy installation and integration into control panels

• Communication Interface: Supports communication via ABB standard protocols for seamless integration with other modules in the automation system.
