BACHMANN OT115/R OT100 Series Operator Terminal

The Operator Terminal OT100 Series features a full graphic 4.2" STN display that supports UTF-8 character coding, allowing for the display of numerous lines of Asiatic and Cyrillic characters. The LED backlight brightness can be controlled through the PLC program or via input elements. These terminals are designed for extreme conditions, with an operating temperature range from -30°C to +60°C, ensuring dependability in challenging environments.

Communication with the M1 controller is facilitated through an integrated interface that can be programmed to adhere to either the RS232 or RS422 standard. The arrangement and design of the control elements, including an alphanumeric multi-click keyboard, are user-friendly, reminiscent of mobile phone interfaces. The keys are embossed and equipped with integrated snap disks for improved tactile feedback. The aluminum front panel with an inlayed front foil emphasizes the terminal's sophisticated and robust character.

Key Features:

• Full-graphic 4.2" STN Bluemode display with 240 x 64 pixels
• Model-dependent operating/display elements: 5x softkeys, alphanumeric multi-click keyboard, 1x Exit key, 1x Shift key, 1x keyboard entry lock/unlock key, 1x Backspace key, cursor directional pad with Enter key and 3 LEDs
• Convenient project planning via Vis Designer
• Character coding with UTF-8
• Operating temperature range from -30°C to +60°C

Variants:

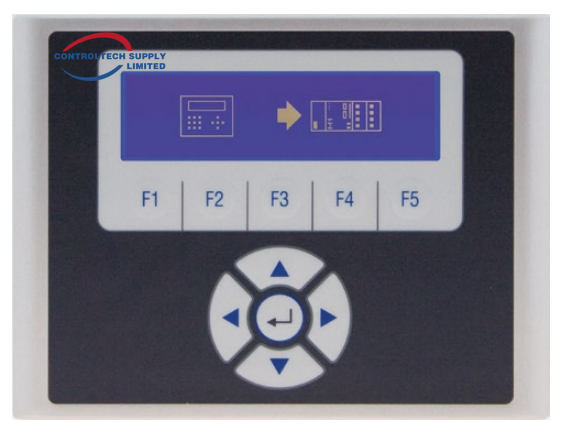

1. 1. OT115/R/BE1: 4.2" STN-Bluemode display (240x64 Pixel), 1x RS232, front panel with cross elements, operating temperature -20°C to +60°C, storage temperature -30°C to +80°C, relative humidity operation 5% to 95% without condensation.

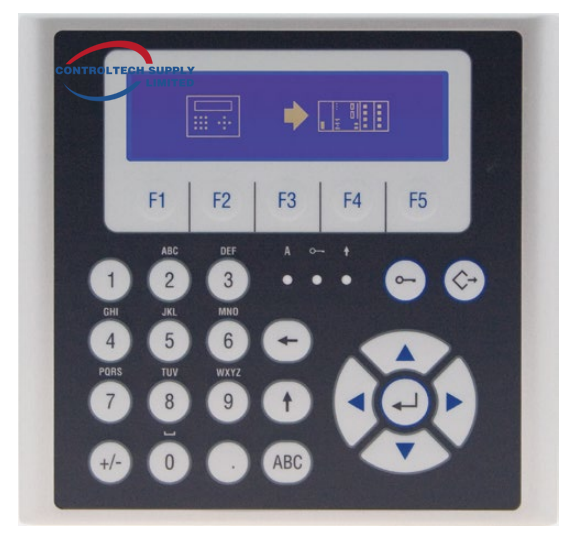

   2. OT115/R/BE2: 4.2" STN-Bluemode display (240x64 Pixel), 1x RS232, front panel with AlphaNum key, operating temperature -20°C to +60°C, storage temperature -30°C to +80°C, relative humidity operation 5% to 95% without condensation.
   3. OT115/R/BE2/CC: 4.2" STN-Bluemode display (240x64 Pixel), 1x RS232, front panel with AlphaNum key, operating temperature -30°C to +60°C, storage temperature -40°C to +85°C, relative humidity operation 5% to 95% with condensation.

Specifications:

• Processor: 72 MHz 32-bit
• RAM: 64 kB internal

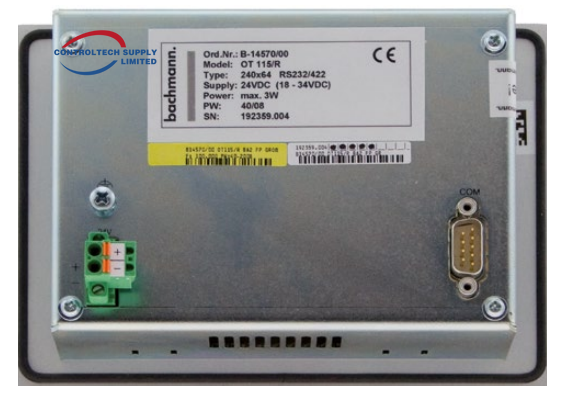

• Interface: RS232/422 (switchable)
• Power Supply: 24 V DC (18 V to 36 V), 10 ms buffering
• Certifications: CE, UL, GL; pending: ABS, BV, DNV, LR
• Degree of Protection: Front IP65 / Rear IP20
• Software: Visualization Project planning - Vis Designer / programming - C, PLC environment
• Dimensions and Weights: Vary by model (see table)
