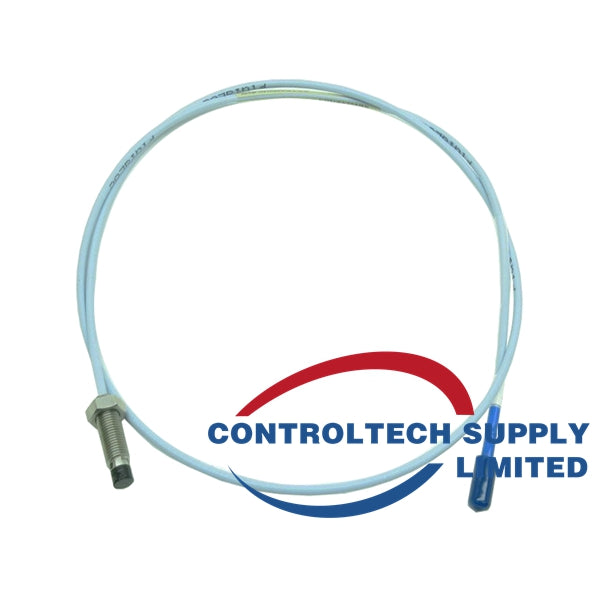

BENTLY NEVADA 330101-00-20-20-02-05 Proximity Probe

3300 XL 8 mm Proximity Transducer System Components

The 3300 XL 8 mm Proximity Transducer System includes:

• One 3300 XL 8 mm Probe
• One 3300 XL Extension Cable
• One 3300 XL Proximitor Sensor

Part Number for Proximity Probe

• 330101-00-20-20-02-05 refers to a Proximity Probe.

3300 XL 8 mm Proximity Probes (Smooth Case)

Available part numbers for the 3300 XL 8 mm Proximity Probe:

• 330140: 3300 XL 8 mm Probe without armor
• 330141: 3300 XL 8 mm Probe with armor

Part Number Configuration (AXX-BXX-CXX-DXX)

This part number configuration allows for customizing the probe with various options:

A: Overall Case Length Option

Order in increments of 0.1 in. Available length configurations:

• Maximum Length: 9.6 in
• Minimum Length: 0.8 in
• Example: 2 4 = 2.4 in

B: Total Length Option

• 0 5: 0.5 metre (1.6 feet)
• 1 0: 1.0 metre (3.3 feet)
• 1 5: 1.5 metres (4.9 feet)
• 2 0: 2.0 metres (6.6 feet)
• 5 0: 5.0 metres (16.4 feet) (only for use with 5-metre Proximitor sensor)
• 9 0: 9.0 metres (29.5 feet)

C: Connector and Cable-Type Option

• 0 1: Miniature coaxial ClickLoc connector with connector protector, standard cable
• 0 2: Miniature coaxial ClickLoc connector, standard cable
• 1 1: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
• 1 2: Miniature coaxial ClickLoc connector, FluidLoc cable

D: Agency Approval Option

• 0 0: Not required
• 0 5: CSA, ATEX, IECEx Approvals

Field Wiring

• Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
• Recommended Cable: 3-conductor shielded triad cable and tinned field wiring
• Maximum Length: 305 metres (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor
• Note: Use the frequency response graphs (pages 27 and 28) for signal rolloff at high frequencies when using longer field wiring lengths.

Linear Range

• Linear Range: 2 mm (80 mils)
• The linear range begins at approximately 0.25 mm (10 mils) from the target and extends from 0.25 to 2.3 mm (10 to 90 mils) (approximately –1 to –17 Vdc).

Recommended Gap Setting for Radial Vibration

• -9 Vdc (approximately 1.27 mm (50 mils))
