Bently Nevada
1005 in stock

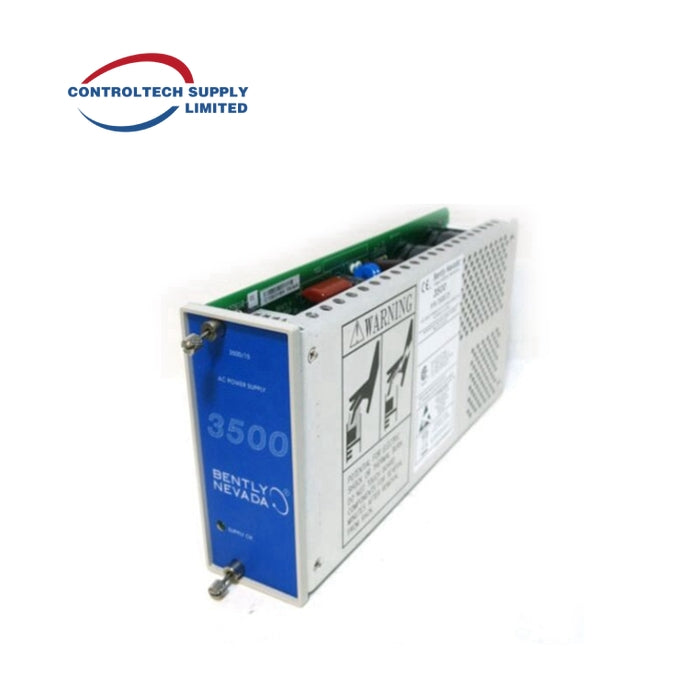

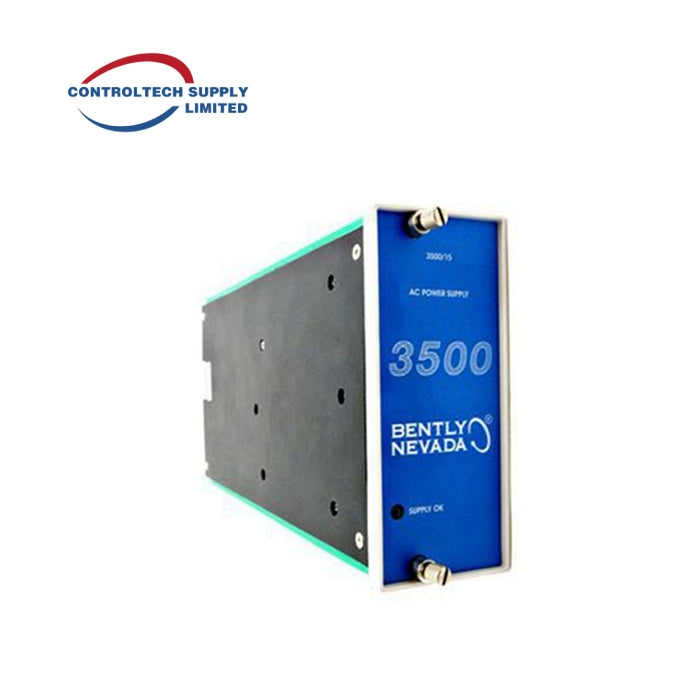

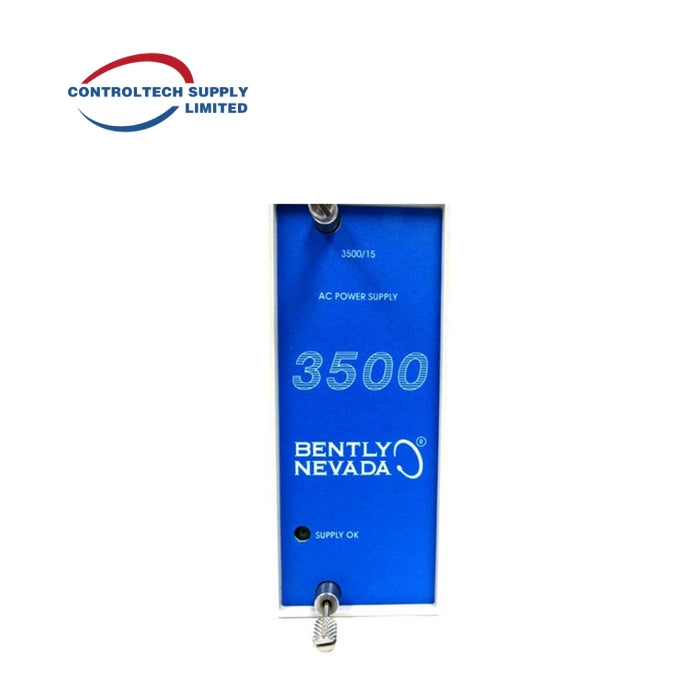

Bently Nevada 3500/15-01-01-00 Power Supply Module
Bently Nevada 3500/15-01-01-00 Power Supply Module
Manufacturer: Bently Nevada
Product No.: 3500/15-01-01-00
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Description
The 3500/15-01-01-00 Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
Physical
- Power Supply Module Dimensions (Height x Width x Depth): 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
- Weight: 1.39 kg (3.06 lb)
- Power Input Modules Dimensions (Height x Width x Depth): 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
- Weight: 0.34 kg (0.75 lb)
Spares
| Part Number | Description |
|---|---|
| 106M1079-01 | Universal AC Power Supply Module |
| 106M1081-01 | Universal AC Power Input Module |
| 129486-01 | Legacy High Voltage DC Power Supply Module |
| 129478-01 | Legacy High Voltage DC Power Input Module |
| 133292-01 | Legacy Low Voltage DC Power Supply Module |
| 133300-01 | Legacy Low Voltage DC Power Input Module |
| 114M5329-01 | High Voltage DC Power Supply |
| 115M7750-01 | High Voltage DC PIM |
| 114M5330-01 | Low Voltage DC Power Supply |
| 114M5335-01 | Low Voltage DC PIM |
| 01720025 | Replacement Fuse (for both AC Power Input Module and Legacy High Voltage DC Power Input Module) |
| 01720045 | Replacement Fuse (Low Voltage DC Power Input Module and Legacy Low Voltage DC Power Input Module) |
| 120M3877 | Replacement Fuse (Fast blow rated at 5A/500 Vac, Size 6.3 x 32 mm) |
| 131150-01 | Power Supply Blank Front Panel (qty 1, includes screws) |
| 128085-01 | Power Supply Rear Input Connector Cover (qty 1) Order part 04310251 for screws. |
| 04310251 | Screw for Power Supply Input Cover (qty 2) |
| 129767 | 3500/15 Power Supply User Guide |
| 118M0915-01 | Replacement connector for Universal AC Power Input Module |
| 118M0915-02 | Replacement connector for DC Power Input Module |
| 129M0198 | Replacement fuse (High Voltage DC Power PIM) |
