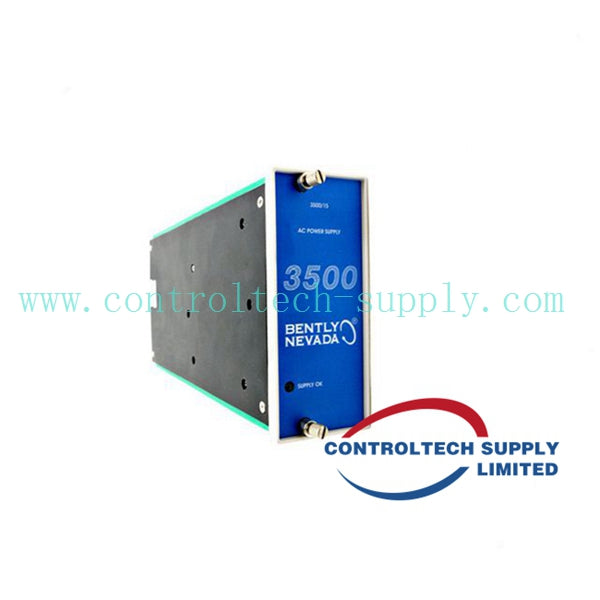

Bently Nevada 3500/15 114M5329-01 High Voltage DC Power Supply

3500/15 AC and DC Power Supplies

Description

• The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack.
• The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
• When two power supplies are installed in a rack:
  • The lower slot acts as the primary supply.
  • The upper slot acts as the backup supply.
• Removing or inserting either power supply module does not disrupt rack operation as long as a second power supply is installed.
• The power supplies accept a wide range of input voltages and convert them for use by other 3500 modules.

Available Power Supplies for the 3500 Series Machinery Protection System

• Universal AC Power
• High Voltage DC Power Supply
• Low Voltage DC Power Supply

114M5329-01 High Voltage DC Power Supply

Technical Specifications

• Input Voltage:
  • High Voltage DC: 88 to 140 Vdc
  • Universal AC: 110 to 220 Vac nominal, 85 to 264 Vac rms, 120 to 373 Vac peak
  • Low Voltage DC: 20 to 30 Vdc
• Dimensions: 59 cm x 2 cm x 1.5 cm
• Weight: 0.6 kg
• Maximum Current Draw: 2.8 A rms (maximum)
• Operating Temperature: -22°C to 150°C (-30°F to 65°F)
