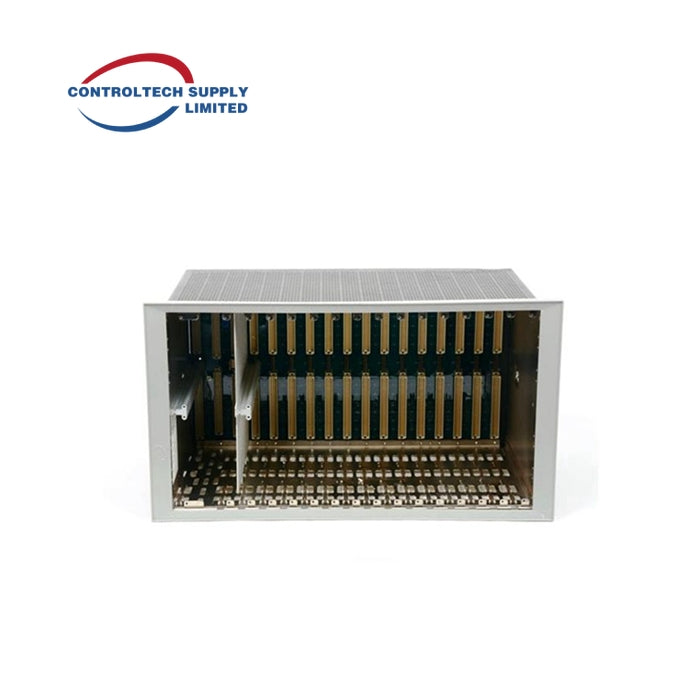

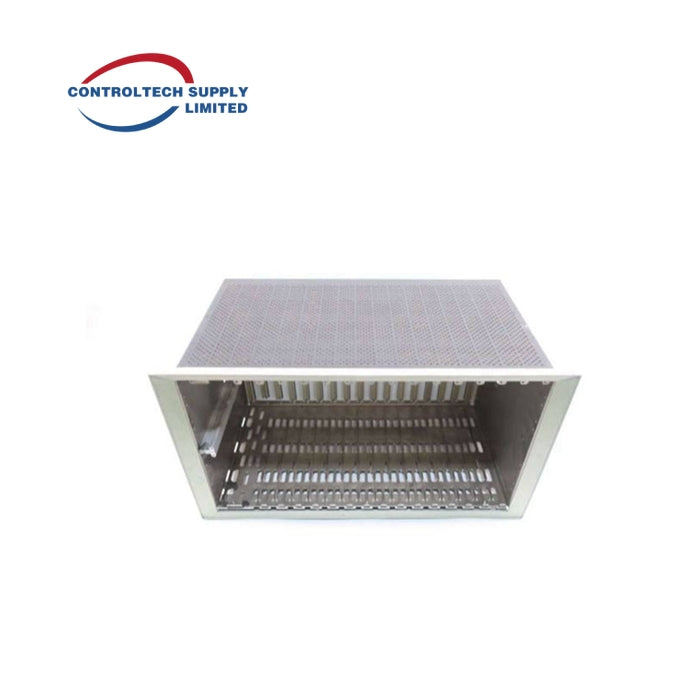

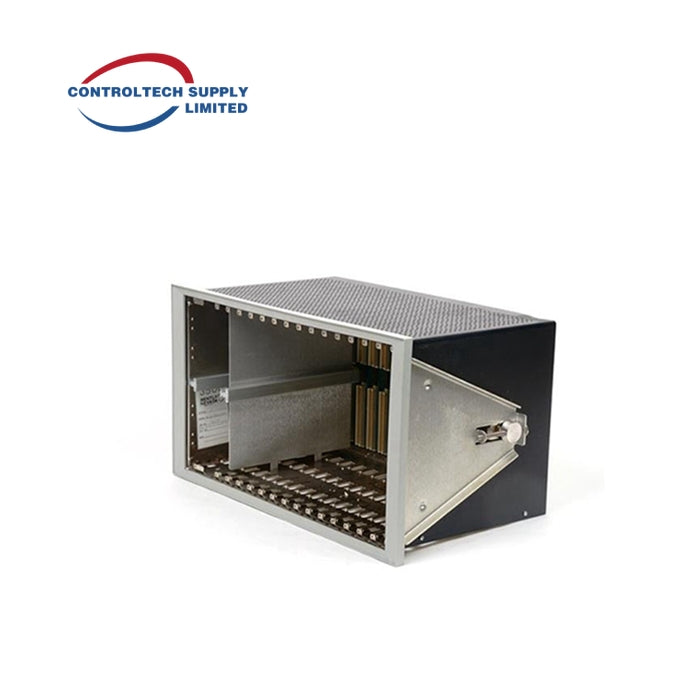

BENTLY NEVADA 3500/25 125388-01 Half-height Chassis

Description

The BENTLY NEVADA 3500/25 125388-01 is a half-height chassis designed for use with Bently Nevada’s machinery protection systems. It is specifically built to house and organize Keyphasor I/O modules, providing a compact and efficient solution for system integration. This chassis supports modules such as the Keyphasor I/O and Internal Barrier versions, offering flexibility in industrial applications. The chassis is engineered to withstand challenging environments with a wide operational temperature range and a high level of humidity resistance.

Physical

• Main Module Dimensions

• Height x Width x Depth: 119.9 mm x 24.4 mm x 256.5 mm (4.72 in x 0.96 in x 10.10 in)

• Weight: 0.34 kg (0.76 lbs.)

• I/O Module Dimensions

• Height x Width x Depth: 241.3 mm x 24.4 mm x 103.1 mm (9.50 in x 0.96 in x 4.06 in)

• Weight: 0.46 kg (1.01 lbs.)

Environmental Limits

• Operating Temperature

• -30°C to +65°C (-22°F to +150°F) when used with Keyphasor I/O Module other than the Internal Barrier version

• 0°C to +65°C (32°F to +150°F) when used with Keyphasor Internal Barrier I/O Module (Internal Termination)

• Storage Temperature

• -40°C to +85°C (-40°F to +185°F)

• Humidity

• 95%, non-condensing
