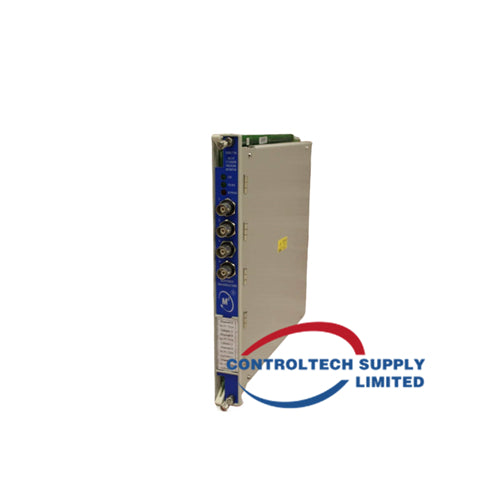

Bently Nevada 3500/40M-01-00 Proximitor Monitor

Description

The 3500/40M-01-00 accepts input from proximity transducers manufactured by Bently Nevada. It processes these signals to calculate various vibration and position measurements. Users can then program alarms based on these measurements to trigger when preset thresholds are exceeded. This allows for preventative maintenance and helps to avoid machine failures.

Features:

• Monitors vibration on up to four channels simultaneously
• Can also monitor process parameters like speed and temperature
• Generates alarms to indicate critical machinery faults
• Records data for trending and analysis purposes
• Designed with a rugged construction to endure harsh industrial environments

Technical Specifications:

• Input signal: Accepts signals from 1 to 4 proximity transducers
• Power consumption: 7.7 watts (typical)
• Input impedance: Standard I/O 10 kΩ (Proximitor and acceleration inputs), TMR I/O 50 kΩ (effective impedance of three bussed TMR I/O channels wired in parallel to one transducer)
• Sensitivity:
• Radial vibration: 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil)
• Thrust: 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil)
• Eccentricity: Refer to datasheet for details
• Operating temperature: -40 °C to +85 °C
• Storage temperature: -55 °C to +100 °C
• Dimensions: 140 mm x 190 mm x 76 mm (W x H x D)
• Weight: 2.5 kg

Packing and transportation

1) Goods in stock, we will issue the order within 3 days after receiving the payment.

2) We can ship goods to all parts of the world by DHL,UPS,Fedex and EMS. The packing is strong. If you have any special requirements, please let me know.

3) You will receive the goods approximately 7 days after we send them.



You may have any questions

Q: What are your packaging conditions?

A: Generally speaking, we pack the goods in cartons with foam padding to prevent damage to the goods.



Q: What are your payment terms?

A: 100% T/T before shipment. Western Union, credit cards are also acceptable



Q: What about your delivery time?

A: Generally 1-3 days after receiving your payment. The specific delivery time depends on the type and quantity of the order.
