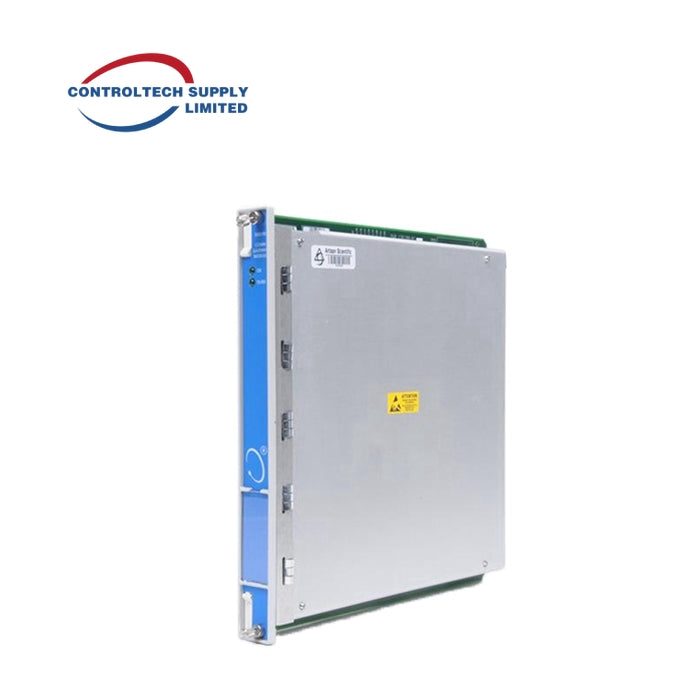

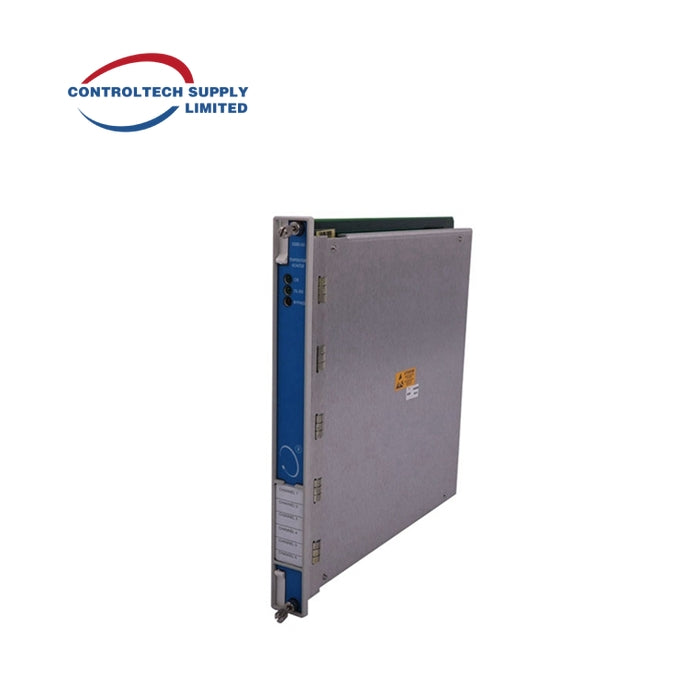

Bently Nevada 3500/92 Communication Gateway

3500/92 Communication Gateway

Description

• The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems.
• It supports both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications.
• Enables Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.
• Supported protocols include:
  • Modicon Modbus protocol (via serial communications)
  • Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
  • Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

Physical

• Main Board Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
• Main Board Weight: 0.82 kg (1.8 lb.)
• I/O Modules Dimensions (Height x Width x Depth): 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
• I/O Modules Weight: 0.44 kg (0.96 lb.)

Rack Space Requirements

• Monitor Module: 1 full-height front slot
• I/O Modules: 1 full-height rear slot

Environmental Limits

• Operating Temperature (Main and I/O Module): -30°C to +65°C (-22°F to +149°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 95%, non-condensing
