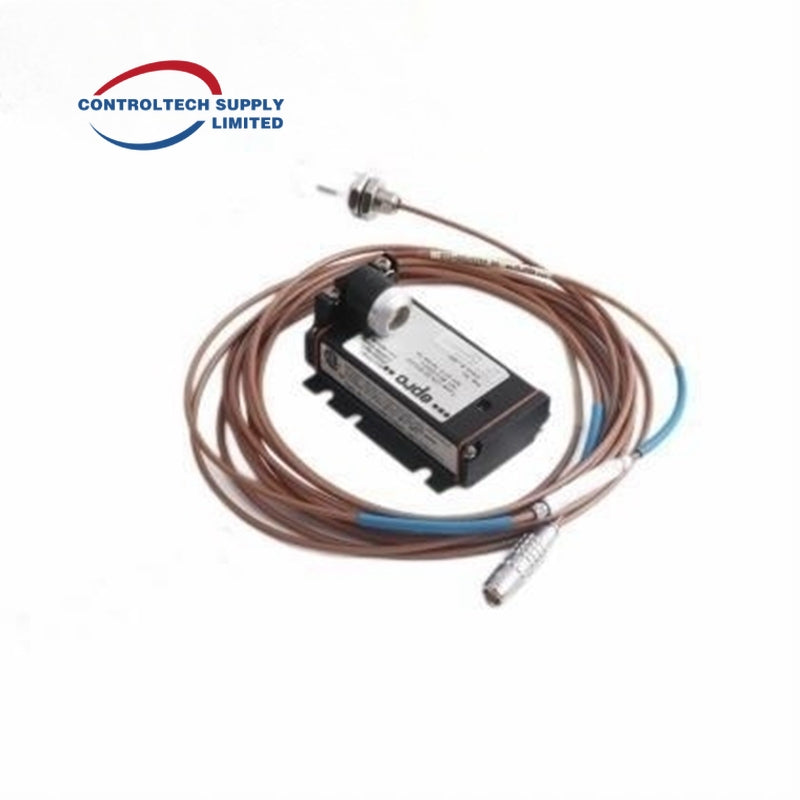

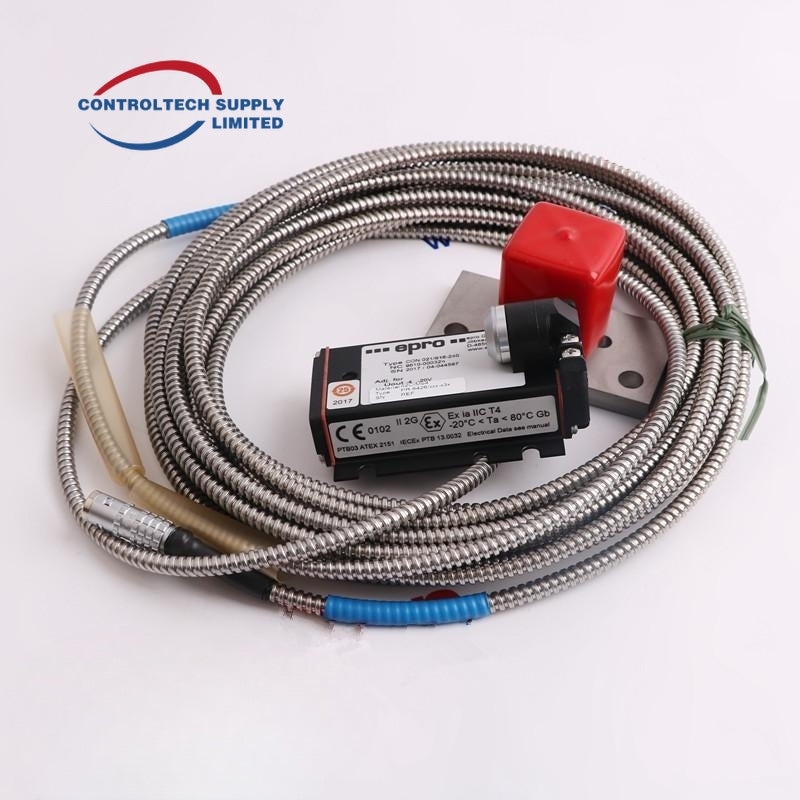

EPRO PR6424/002-131+CON031 16mm Eddy Current Sensor with CON031

PR6424/002-131+CON031 Eddy Current Sensor & Signal Converter

EPRO PR6424/002-131 Eddy Current Sensor

• Type: Non-contact sensor
• Applications: Critical turbomachinery such as steam, gas, and hydro turbines, compressors, pumps, and fans
• Measurement: Radial and axial shaft dynamic displacement, position, eccentricity, and speed
• Sensitivity/Linearity: 4 V/mm (101.6 mV/mil) ≤ ±1.5%
• Air Gap (Center): Approx. 2.7 mm (0.11”) Nominal
• Long Term Drift: <0.3%
• Range:
  • Static: ±2.0 mm (0.079”)
  • Dynamic: ±2.0 mm (0.079”)
• Target Material: Ferromagnetic Steel (42CrMo4, AISI/SAE 4140)
• Maximum Surface Speed: 2,500 m/s (98,425 ips)
• Minimum Shaft Diameter: 80 mm (3.15”)
• Operating Temperature Range: -35 to 150°C (-31 to 302°F)
• Temperature Error: <4%/100°K (API 670 Compliant)
• Pressure Resistance to Sensor Head: 10,000 hPa (145 psi)
• Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
• Material:
  • Sleeve: Stainless Steel
  • Cable: PTFE
• Weight: Approx. 200 grams (7.05 oz)

EPRO CON031 Signal Converter

• Type: Eddy Current Signal Converter
• Applications: Critical turbomachinery such as steam, gas, and hydro turbines, compressors, pumps, and fans
• Frequency Range: 0 to 20,000 Hz
• Rise Time: <15 μs
• Operating Temperature Range: -30 to 100°C (-22 to 212°F)
• Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
• Protection Class: IP20
• Supply Voltage Range: -23V to -32V (Output Range -4V to -20V)
• Housing Material: ALMgSi 0.5 F22
• Weight: ~120 grams (4.24 oz)
• Mounting: 4 Screws M5x20
• Connections: Screw terminal (max. 1.5mm², wire-end sleeves)
