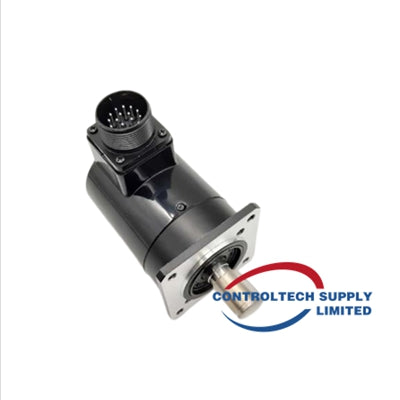

GE A860-0309-T302 High-Precision Position Coder

Product Description

• Type: Position Coder / Encoder
• Series: Alpha
• Function: Provides rotational position feedback for control systems
• Housing: All-aluminum for durability and resistance to environmental factors

Technical Specifications

• Pulses per Revolution: 1024
• Maximum Speed: 10,000 RPM
• Flange Diameter: 68 mm
• Center Diameter: 50 mm
• Connector: 17 pins integrated to the coder
• Output Circuits: Voltage output (E), open collector (C), long-line drive (L), push-pull output (F)
• Weight: 0.91 kg

Applications

• Industries: Manufacturing, robotics, motion control systems.
• Machinery: CNC machine tools, AC servo motors, DC motors, elevators, glass and ceramic machinery, bending machines, steel bar straightening machines, testing machines, engraving machines, textile machinery, printing machinery, food machinery, aerospace.
