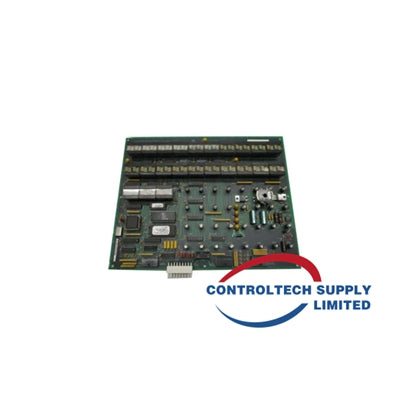

GE DS215UDSAG1AZZ01A Printed Circuit Board (PCB)

Product Description

• The GE DS215UDSAG1AZZ01A is a printed circuit board (PCB) manufactured by General Electric for use in the Mark V Turbine Control System Series.
• It is a key component in controlling automated drive assemblies for wind, gas, and steam turbines.

Technical Specifications

• Manufacturer: General Electric
• Series: Mark V
• Part Number: DS215UDSAG1AZZ01A
• Functional Description: UDSAG1 Circuit Board and Firmware
• Functional Acronym: UDSA
• Revision Quantity: 1 Revision
• Assembly Type: DS215 Special Assembly
• Description:
  • The DS215UDSAG1AZZ01A is a firmware board that provides the necessary software and control instructions for the DS215UDSAG1 circuit board.
  • It is responsible for controlling the operation of the drive assembly, including speed, torque, and position.

Dimensions and Environmental Conditions

• Dimensions: 16 cm x 16 cm x 12 cm
• Weight: 0.8 kg
• Power Supply: 24 VDC
• Operating Temperature: -40°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% non-condensing
