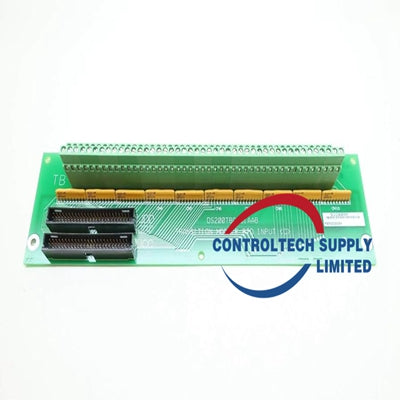

GE Fanuc DS200TBCAG1AAB Analog Input/output (I/O) Terminal Board

GE DS200TBCAG1AAB is an analog input/output (I/O) terminal board used in the Mark V control system by General Electric (GE) for industrial applications.

Key features and functionalities:
Function: It acts as a connection point for analog signals from various sensors and transmitters within the Mark V control system. These signals can represent pressure, temperature, vibration, or other physical measurements crucial for system operation.
Terminals: The DS200TBCAG1AAB features two blocks of 90 signal wire terminals, allowing for connections of numerous sensors and devices.
Connectors: It also includes two 50-pin connectors for interfacing with other components in the Mark V system.
Signal Conditioning: While details are limited, the terminal board likely performs some level of signal conditioning, such as amplification, filtering, or isolation, to prepare the analog signals for processing by the Mark V control system.

Applications:
The DS200TBCAG1AAB is used in various industrial settings where the Mark V control system manages and regulates complex processes. This includes applications in:
Power generation (gas and steam turbines)
Oil and gas production
Chemical processing
Large industrial motors
