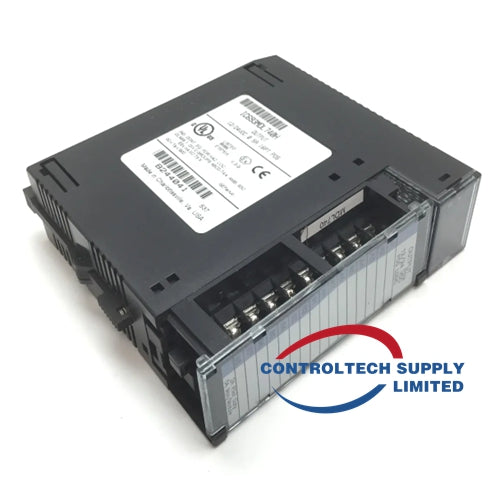

GE Fanuc IC693MDL740D Discrete Output Module

The GE Fanuc IC693MDL740D is a discrete output module used in GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs). It allows the PLC to control external devices like motors, solenoids, and lights by providing on/off signals.

Specifications:
Number of channels: 16
Output type: Sink (NPN)
Output current: 0.5 A per channel
Voltage range: 12 to 24 VDC
LED indicators:
Power On
Individual channel status (on/off)
Operating temperature: 0°C to 55°C (32°F to 131°F)
Mounting: DIN rail mountable

Features:
Provides 16 discrete output channels to control external devices.
Sink (NPN) outputs for connecting to devices that require a low signal to turn on.
Relatively lower output current of 0.5 A per channel compared to some other GE Fanuc discrete output modules, suitable for controlling smaller devices or applications with lower power requirements.
LED indicators provide visual feedback on power status and individual channel activity.
Compact design saves space in the control panel.

Applications:
Industrial automation applications requiring control of various external devices with lower power requirements, like indicator lights, small solenoid valves, or relays.
Machine control applications needing on/off signals for operating smaller machinery components.
Building automation systems for controlling low-power lighting, sensors, or actuators.

GE NEW ARRIVAL LIST IN STOCK
UR8NH	UR9NV	IS200ACLEH1BCB
UR6CH	URRHV	IS200EPSMG2AED
UR9GH	URSHB	IS200EROCH1ABC
UR9EH	UR8LM	IS200ERIOH1ABC
UR67H	UR8LV	IS200ERDDH1ABB
UR8FH	UR6LV	IS200DSPXH1DBD
UR6DH	URRHH	IC752SPL013
UR6CH	EX2100	IS220PPRAH1A
UR8HH	IC200ALG240	IS220UCSAH1A
G60G01HCHF8FH67M8FP6DU6DW6C	T60G01HCHF8HH67M8FP6DU6DW6C	750-P5-G5-S5-HI-A20-G-E

The GE IS200 is a family of printed circuit boards (PCBs) used in GE Mark VI turbine control systems. The IS200 family includes a variety of boards, each with a specific function. Some of the most common IS200 boards include:

• IS200DSPXH2: This board is a digital signal processor (DSP) that provides the Mark VI system with its processing power.
• IS200DTTCH1A: This board is a turbine control unit (TCU) that interfaces with the turbine and controls its operation.
• IS200ESYSH3A: This board is a high-speed serial link interface board that provides communication between the Mark VI system and other devices.
• IS200ECTBG1A: This board is an exciter terminal card that provides input and output signals for the exciter.

The GE IS200 family of PCBs is designed to be highly reliable and to provide years of trouble-free operation. The boards are also designed to be easy to maintain, with modular construction that makes it easy to replace individual components.
