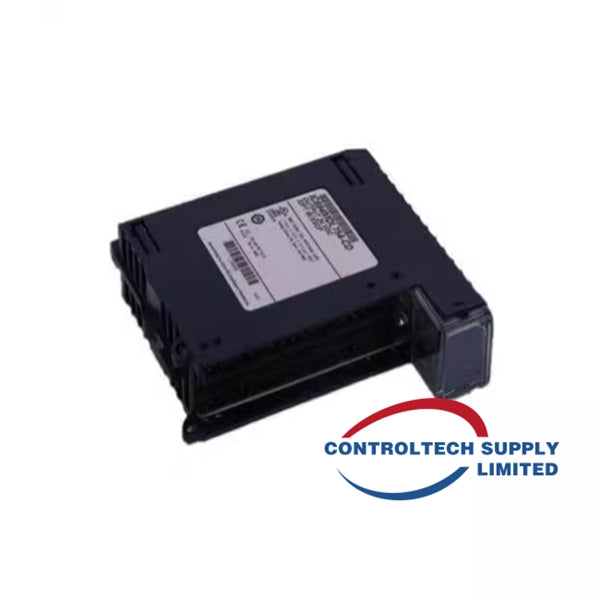

GE Fanuc IC693PCM301M Pulse Counter Module

The GE Fanuc IC693PCM301M is a pulse counter module used in GE Fanuc Series 90-30 Programmable Automation Controllers (PACs). It is a high-speed, multi-channel module that is designed to count pulses from various types of sensors and encoders.

Features:
Four independent pulse counter channels: Each channel can count up to 24-bit resolution.
Counting modes:
Quadrature: Counts both rising and falling edges of two quadrature signals for high-resolution counting.
Frequency: Measures the frequency of a pulse train.
Period: Measures the period (time between pulses) of a pulse train.
Input voltage range: 5VDC to 24VDC.
Maximum input frequency: 10MHz.
Optocoupler isolation: Provides electrical isolation between the input and output circuits for noise immunity.
LED status indicators: Show the status of each channel, including counting direction and overflow.

Applications:
Motion control: Counting encoder pulses for closed-loop position control of motors and other actuators.
Speed measurement: Measuring the speed of rotating shafts or other moving objects.
Event counting: Counting events such as product units passing through a conveyor belt.
Flow measurement: Measuring the flow of liquids or gases by counting pulses from a flow meter.
Distance measurement: Measuring the distance traveled by an object by counting encoder pulses.

Additional Notes:
The GE Fanuc IC693PCM301M is no longer in production, but it may still be available from some distributors.
The user manual for the IC693PCM301M contains detailed information about its specifications, features, and programming instructions.
