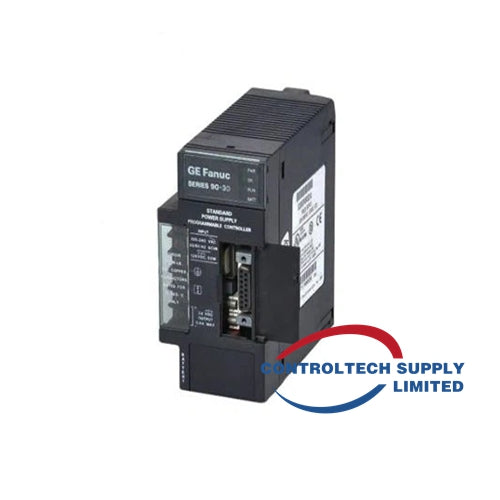

GE Fanuc IC693PWR330E Power Supply Module

The GE Fanuc IC693PWR330E is a high-capacity power supply module used with GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs) and other compatible automation systems. It provides the necessary power for the PLC and its connected modules to function.

Overview:
Type: High-Capacity Power Supply
Power Rating: 60 Watts
Input Voltage:
AC: 120/240 VAC (+/- 10%), 47-63 Hz
DC: 24 VDC (+/- 20%)
Output Voltage: 24 VDC
Output Current: 2.5 A
LED Indicators: Power On, Output Overload
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Mounting: Wall or DIN rail mountable

Features:
High power rating: Provides 60 watts of power, suitable for systems with more demanding power requirements compared to the standard power supplies like the IC693PWR321Y or IC693PWR322E.
Universal AC/DC input: Allows for connection to either AC or DC power sources, offering flexibility in installation.
Overload protection: Protects the unit from damage by automatically shutting down if the output current exceeds the rated value, ensuring safe operation.
LED indicators: Provides visual confirmation of the power status and potential overload conditions, aiding in troubleshooting and maintenance.
Compact design: Takes up minimal space in the control panel, making it suitable for applications with limited space.

Applications:
Industrial automation systems using GE Fanuc Series 90-30 PLCs or compatible controllers with higher power demands.
Machine control applications requiring a reliable and efficient power source for more complex control systems.
Process control applications where continuous and reliable power is crucial for critical equipment.

Important Notes:
Like other Series 90-30 components, the IC693PWR330E is considered obsolete as GE Fanuc is no longer in operation.
While still available through some vendors, finding technical support and replacement parts might be challenging.
It's essential to consider the potential obsolescence and limited support when using this product.
