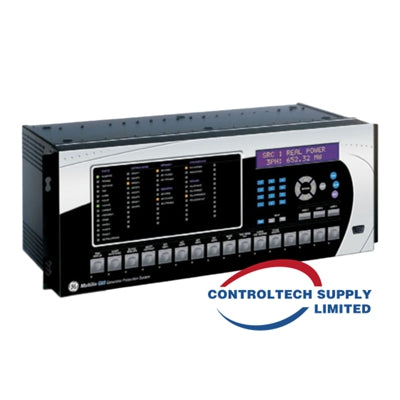

GE G60N00HUHF8LH6TM8LP6CU6CW6C Generator Protection System

GE G60N00HUHF8LH6TM8LP6CU6CW6C Generator Protection System

Description:

• The G60 offers superior protection for medium and large generators, including large steam and combustion turbines, combined cycle generators, and multi-circuit hydro units.
• It can also be used on pumped storage generators without the need to switch the CT secondary circuitry.

Technical Specifications:

• Advanced Protection Elements: Provides secure, high-speed protection elements for complete generator protection, compliant with IEEE C37.102.
• IEC 61850 Support: Features advanced IEC 61850 Ed. 1 and Ed. 2 certified implementation, complete settings via SCL files, and flexible process bus support (IEC 61850-9-2LE, IEC 61869, or IEC 61850-9-2 Hardfiber).
• Routable GOOSE (R-GOOSE): Enables GOOSE messages beyond the substation, allowing wide area protection and control applications.
• Cybersecurity Features (“CyberSentryTM”): Helps meet modern industry requirements.
• Phasor Measurement Unit (PMU): Supports synchrophasor measurement according to IEEE C37.118 (2011) and IEC 61850-90-5.
• Application Flexibility: Offers multiple I/O options, including high-density I/O, programmable logic, modularity, and customization.
• Integrated Display: Real-time visualization and control via an integrated large, full-color display.

Applications:

• Medium to large generators typically driven by steam, gas, or hydraulic turbines.
• Pumped storage generators used as pumping motors for reservoir storage.
• Stand-alone protection or component in automated substation control systems.
• Standard protection product offering on new General Electric generator installations.
