HIMA

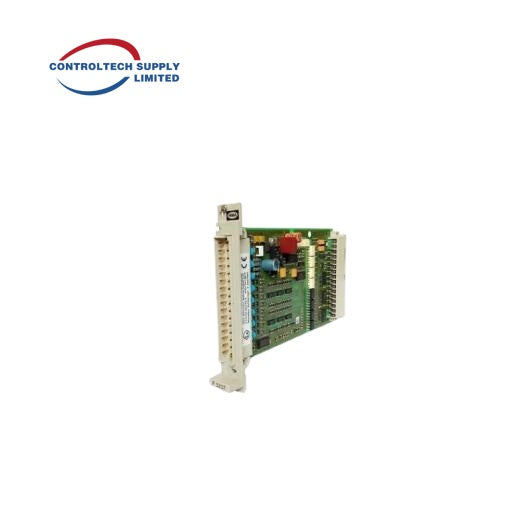

HIMA F3237 8 Channel Safety-Related Input Module
HIMA F3237 8 Channel Safety-Related Input Module
Product Type: Safety-Related Input Module
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months
The HIMA F3237 is a safety-related 8-fold input module for the connection of safety-related proximity switches, proximity switches according to DIN 19234 (NAMUR), and resistor-wired sensors. It monitors the lines for short-circuit and line break and has a safety requirement class of AK 1 ... 6.
The main test routines are:
- Switch on and switch off cability
- Crosstalk of the input circuits by walking 0 test
- Function of the input filters
- Correct function of the module
- Short circuit and wire break of the sensor line
The function of the LEDs is not tested.
The module has the following specifications:
- Switching time: approx. 10 ms
- Operating points:
- 0 signal: 0.35 ≤ IE ≤ 1.2 mA
- 1 signal: 2.1 ≤ IE ≤ 6.0 mA
- Wire break: ≤ 0.28 mA
- Short circuit: ≥ 6.5 mA
- Line impedance: ≤ 50 Ohm (according to DIN 19234)
- Line length: ≤ 1000 m (? = 0.5 mm2)
- Supply voltage: US 8.2 V
- Shunt R*: 681 Ohm; 1 %; 0.25 W
- Space requirement: 4 TE
- Operating data: 5 V =: 90 mA; 24 V =: 170 mA
