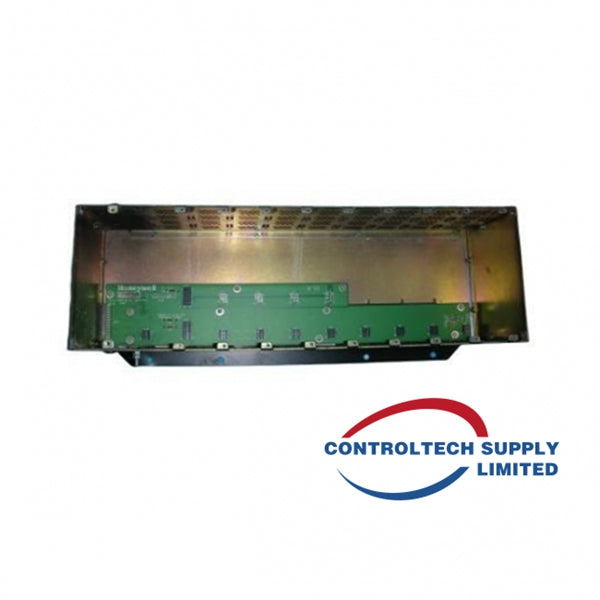

Honeywell 05701-A-0502 Front Access Rack

Product Description

The Honeywell 05701-A-0502 is a front access rack designed for industrial control systems. It provides efficient front wiring connections and supports modular configurations for enhanced automation control.

Technical Specifications

• Module Type: Input/Output module, communication module, or power module (depending on configuration)

• Operating Voltage: Typically 24V DC or higher

• Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)

• Protection Class: IP20 or higher

• Compatibility: Works with Honeywell PLC systems

• Physical Dimensions:

• Width: 19 inches (half-width)

• Height: 6U (approximately 10.5 inches)

• Weight: 3500g

• Chamber Configuration:

• Control Chamber: Sealed against electromagnetic interference

• Relay/Interface Chamber: Houses relay interface cards

• Signal Routing: Backplane ensures signal routing between control cards and the Engineering Card

• Power Supply Compatibility: Supports 8-way AC to DC power supply units
