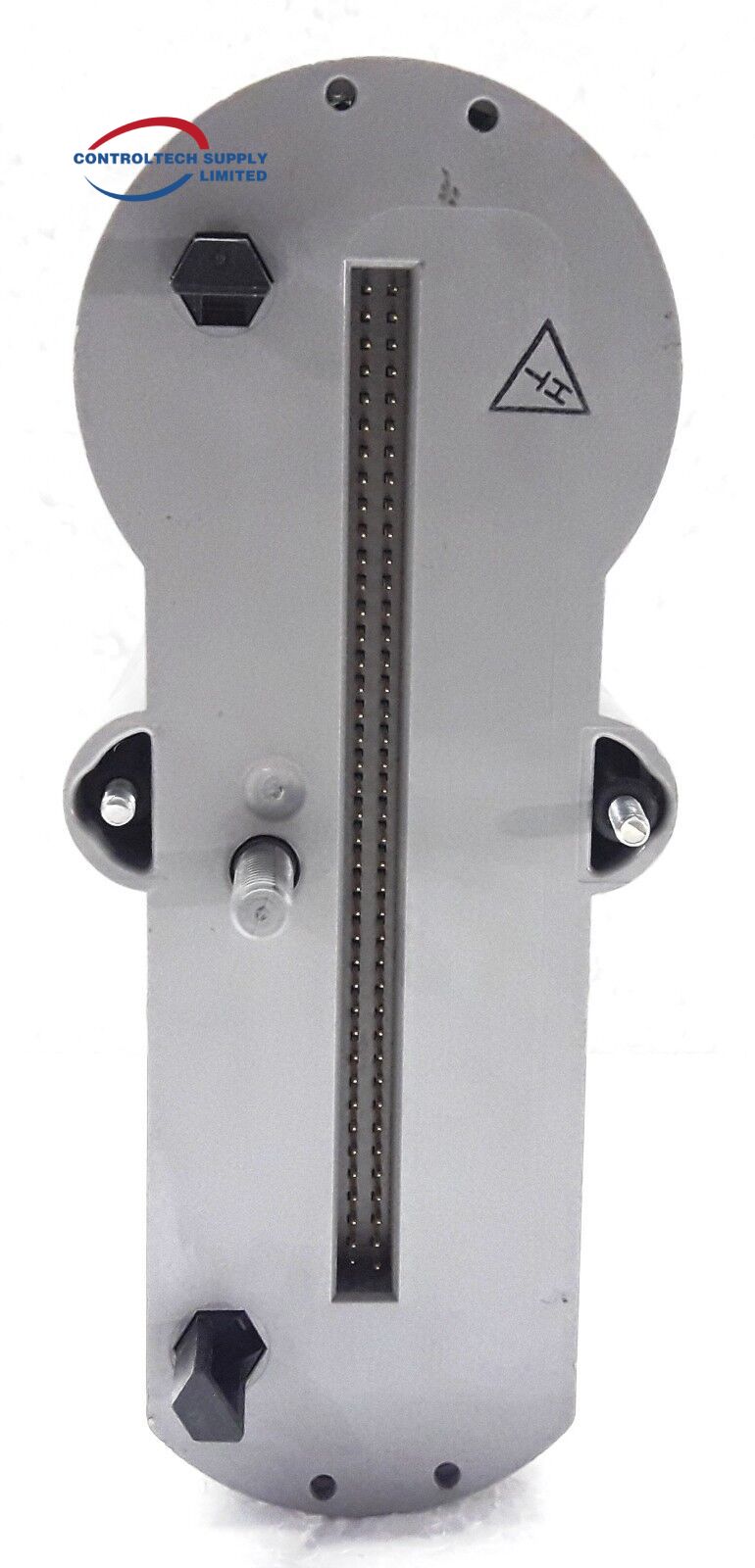

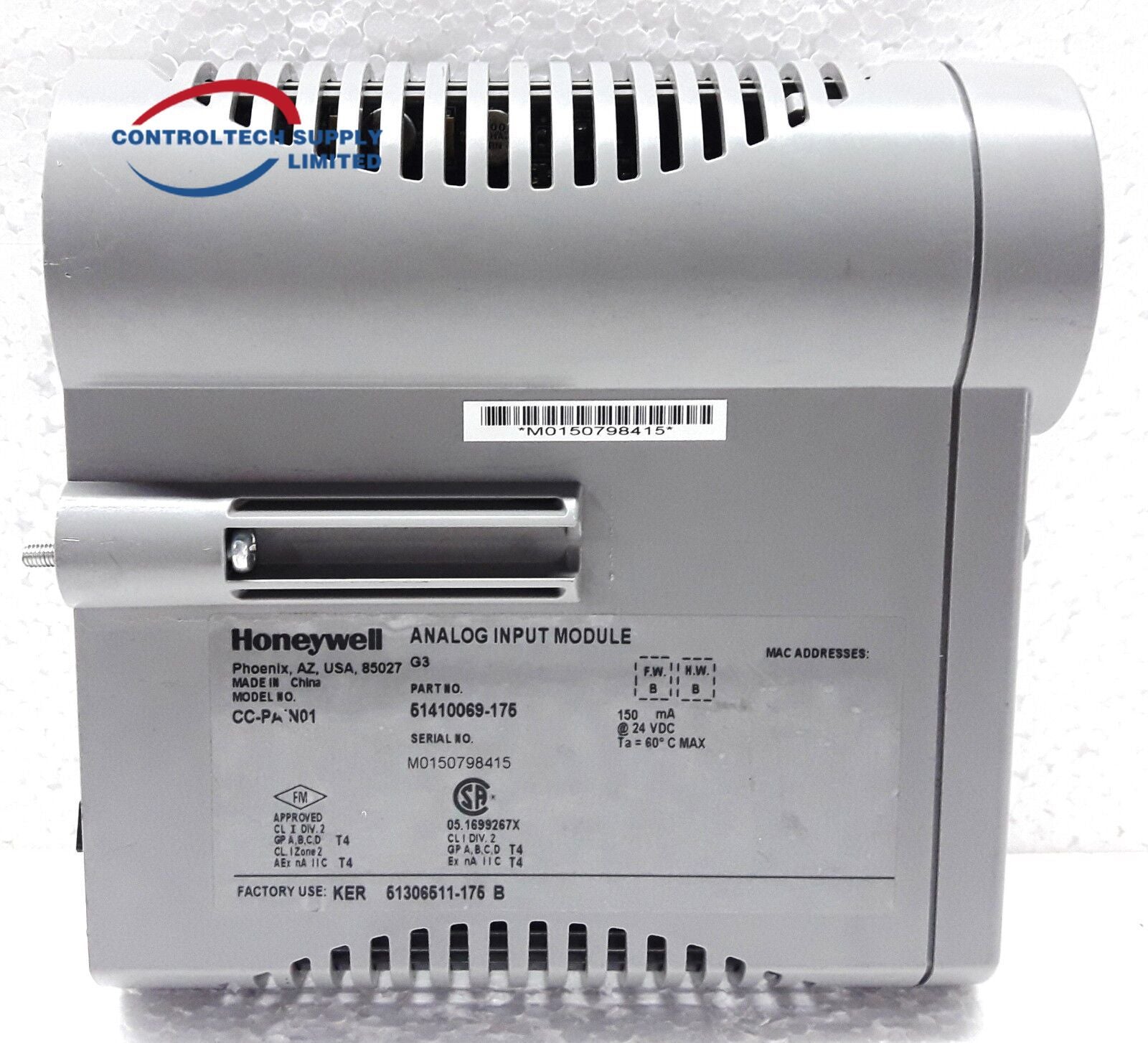

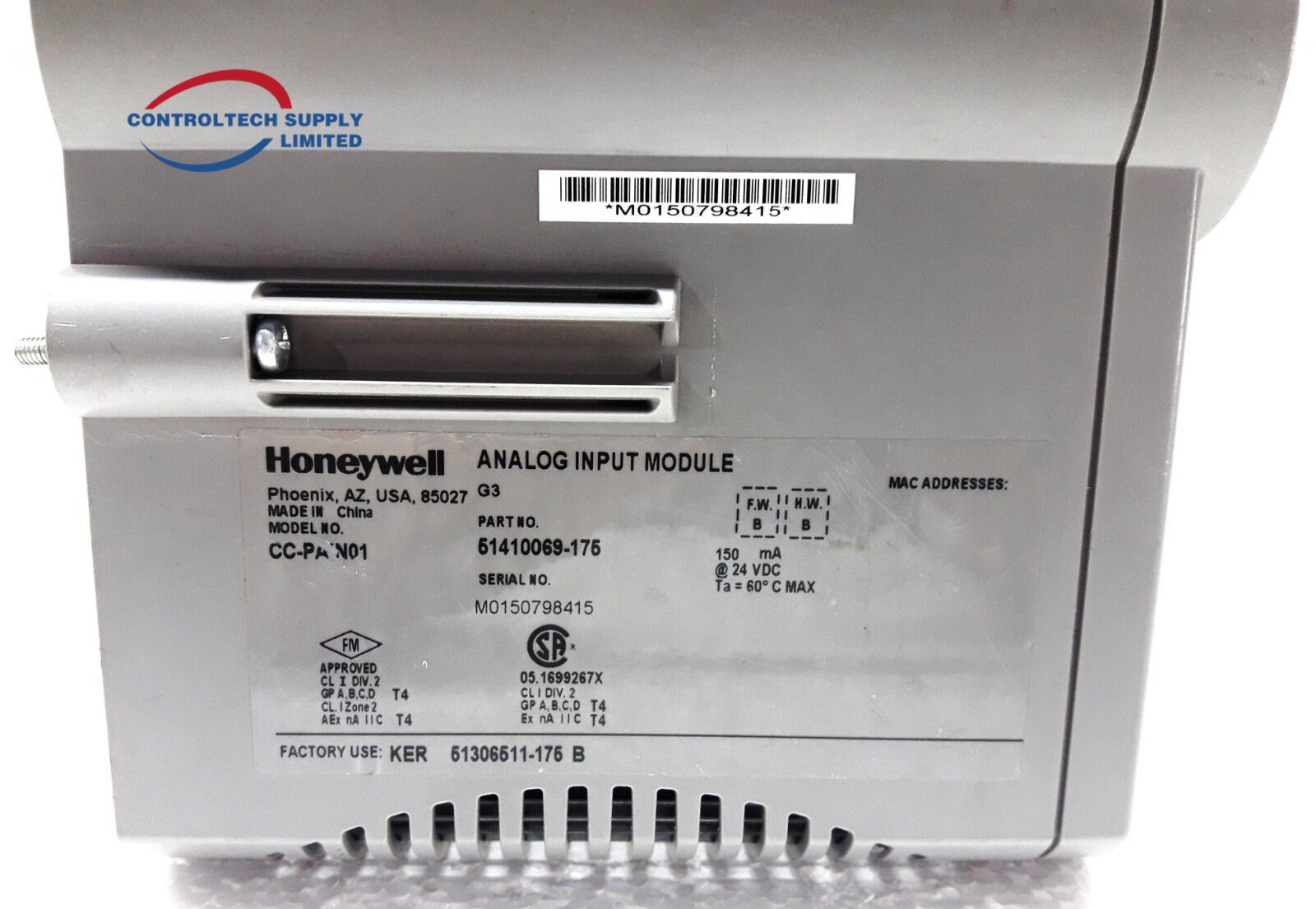

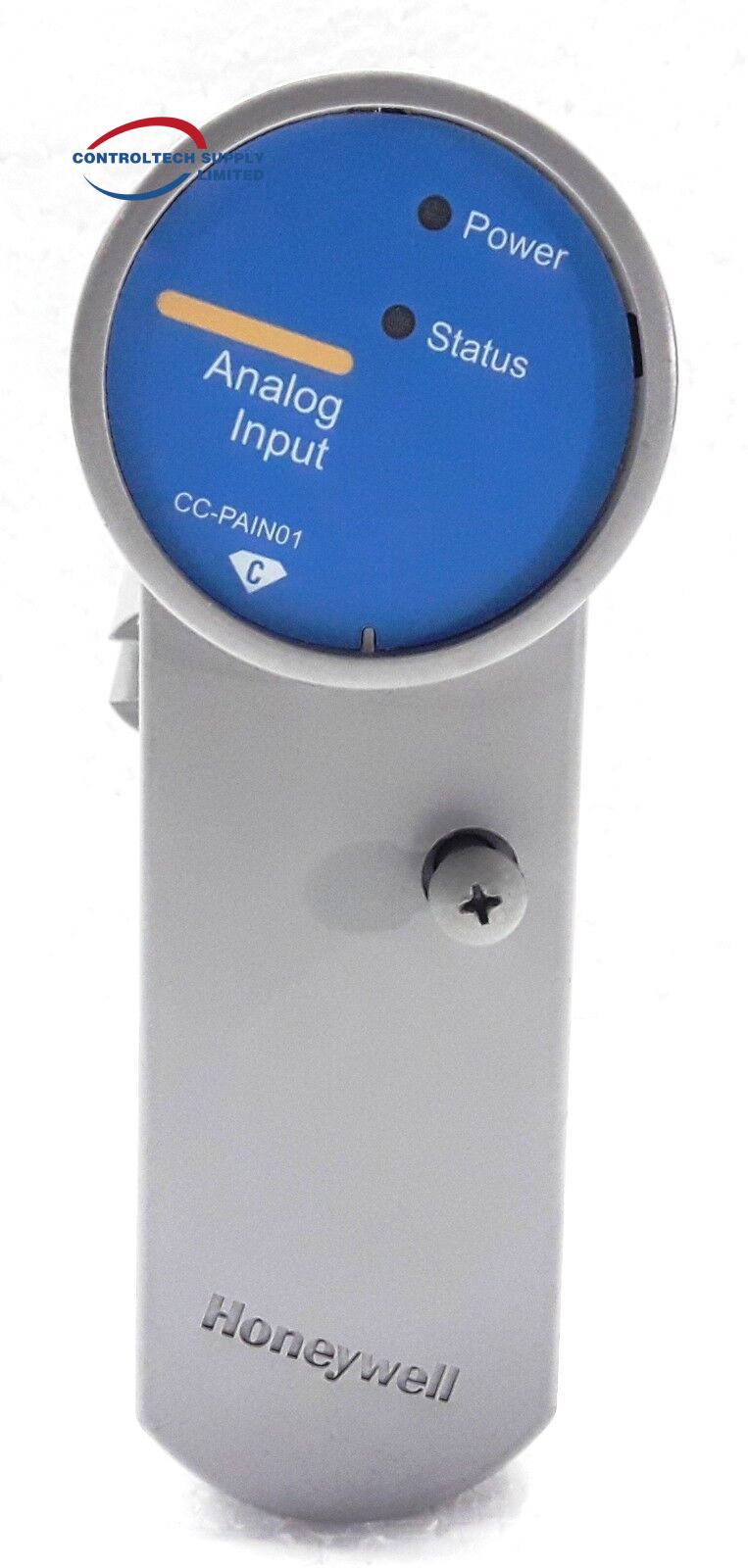

Honeywell CC-PAIN01 51410069-175 High Level Analog Input Module
Honeywell CC-PAIN01 51410069-175 High Level Analog Input Module
Product Type: High Level Analog Input Module
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months
Function:
The Honeywell CC-PAIN01 51410069-175 Analog Input Module is designed to accept high-level current input from sensing devices.
Notable Features:
- Extensive self-diagnostics.
- Optional redundancy for increased reliability.
- Supplies non-incendive field power.
- Fast loop scan for efficient data acquisition.
Non-Incendive Power:
Non-incendive power is provided without the need for external marshalling to support the 4-20mA loop, while still providing channel power protection. This protection is in accordance with Division 2 hazardous protection non-incendive power rating.
Detailed Specifications – Analog Input:
Parameter Specification:
- Input/Output Model: CC-PAIN01 - High-Level Analog Input
- IOTA Models:
- CC-TAIN01 Non-Redundant 6”
- CC-TAIN11 Redundant 12”
- Input Type: Current (2-wire or self-powered transmitters)
- Input Channels: 16 Channels (16 Single Ended)
- Common Mode Rejection Ratio, DC to 60 Hz (500 Ω source imbalance): 70 dB
- A/D Converter Resolution: 16 bits
- Input Range: 4-20 mA (through 200 Ω)
- Normal Mode Rejection Ratio, at 60 Hz: 20 dB
- Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.0 Hz
- Maximum Normal Mode Input: ±30 Volts
- Crosstalk, DC to 60 Hz (channel-to-channel): -60 dB
- Input Scan Rate: 50 ms
- Hardware Accuracy (@ CMV = 0 V):
- ±0.075% of full-scale (23.5°C ± 2°C)
- ±0.15% of full-scale (0 to 60°C)
- Transmitter Field Power Conditioning: Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing. No fusing required.
