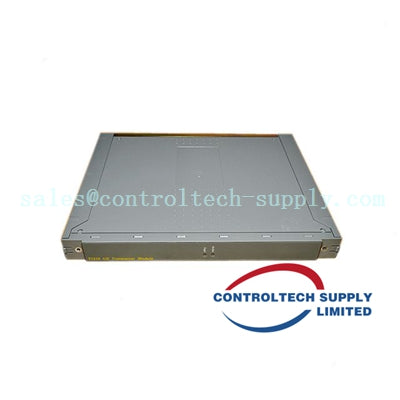

ICS Triplex T8403 Trusted TMR 24 Vdc Digital Input Module

Product Description

The ICS Triplex T8403 Trusted TMR 24 Vdc Digital Input Module is a high-reliability component designed for critical industrial applications. It features Triple Modular Redundancy (TMR) architecture for fault tolerance and enhanced system reliability. Suitable for monitoring up to 40 digital input channels in demanding environments.

Technical Specifications

• Type Designation: T8403

• Number of Channels: 40

• Input Voltage Range: 18-32 VDC

• Input Current Range: 0-22 mA

• Resolution: 3.9 µA (1/256 mA)

• Safety Accuracy: ±1% of full scale

• Sequence of Events (SOE) Resolution: 1 ms

• Time-Stamp Accuracy: ±0.5 ms

• Power Consumption: 15-18 W

• Operating Temperature Range: -5°C to +60°C

• Humidity: 10-95% RH non-condensing

• Dimensions: 266 mm x 31 mm x 303 mm

• Weight: 1.149 kg
