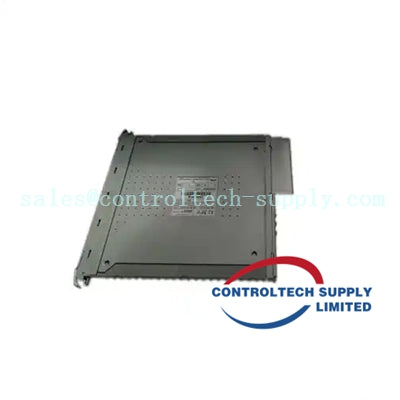

ICS Triplex T8431 Trusted TMR 24 Vdc Analog Input Module

Product Description

The ICS Triplex T8431 Trusted TMR 24 Vdc Analog Input Module is a high-performance module designed for critical industrial applications. It features Triple Modular Redundancy (TMR) for fault tolerance and enhanced reliability. Suitable for monitoring and controlling up to 40 analog input channels in demanding environments.

Technical Specifications

• Type Designation: T8431

• Number of Channels: 40

• Input Voltage Range: 0-6 VDC

• Input Current Range: 0-22 mA

• Resolution: 3.9 µA (1/256 mA)

• Safety Accuracy: ±1% of full scale

• Calibration Accuracy: 0.03%

• Sequence of Events (SOE) Resolution: 1 ms

• Time-Stamp Accuracy: ±0.5 ms

• Power Consumption: 15-18 W

• Operating Temperature Range: -5°C to +60°C

• Humidity: 10-95% RH non-condensing

• Dimensions: 266 mm x 31 mm x 303 mm

• Weight: 1.149 kg
