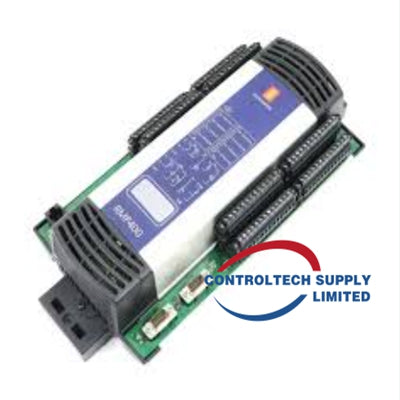

Kongsberg RDIOR420 Digital Input/Output & Relay Module

Key Features

• Channels: 32 I/O channels, including 16 solid-state DI/DO and 16 relay channels.
• Interface: Dual Remote I/O Process Bus interface (RBUS A and RBUS B) for redundant communication with the host control computer (RCU).
• Applications: Suitable for industrial automation and process control.
• Input/Output Types: Configurable as digital input or output channels, and relay channels with normally closed (NC) or normally open (NO) contacts.
• Protection: Over-voltage protection, short-circuit protection on solid-state output channels, and galvanic isolation for communication ports.
• Diagnostics: Extensive module diagnostics, including line fault detection and self-testing features.

Technical Specifications

• Input Supply Voltage: 24 VDC (18-31.2 V)
• Power Consumption: 8 W typical

Digital Input (DI)

• Loop voltage: 24 VDC
• Max input voltage: 30 VDC
• Max input signal frequency: 10 ms pulses
• Input loop current: Max. 4 mA @ 24 VDC
• Channel “Off” current: < 0.5 mA
• Channel “On” current: > 3 mA

Digital Output (DO)

• Loop voltage: 24 VDC
• Loop output: 1 A, short circuit protected “High Side Driver”
• Loop driver trip current: > 1.4 A (reset by command)
• Loop monitor current: Max. 2 mA @ 24 VDC
• Loop driver Off leakage: Max. 0.1 mA @ 24 VDC

Relay Channels

• DC load: 15 to 300 VDC, min. 100 mA, max 5 A at Cos φ = 1
• AC load: 15 to 250 VAC, max 2 A recommended at Cos φ = 0.4
• Breaking capability: 0.1 A: 300 V, 0.3 A: 60 V, 5 A: 24 V

Environmental Specifications

• Operating temperature: -15°C to +70°C
• Storage temperature: -25°C to +70°C
• Humidity: Up to 98% RH
• Protection standards: IP20 (IEC 60529)

Dimensions: 355 x 158 x 87 mm
Weight: 1.35 kg
