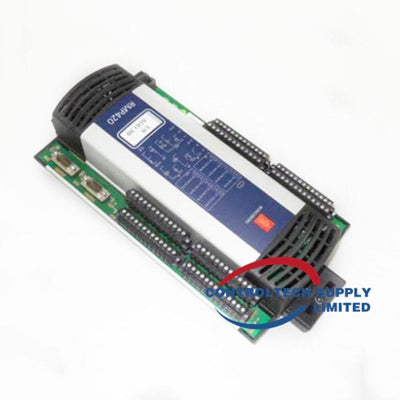

Kongsberg RDIOR420S Digital Input/Output & Relay Module
Kongsberg RDIOR420S Digital Input/Output & Relay Module
Product Type: Digital Input/Output & Relay Module
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months
Key Features
- Channels: 32 I/O channels, including 16 solid-state DI/DO and 16 relay channels.
- Interface: Dual Remote I/O Process Bus interface (RBUS A and RBUS B) for redundant communication with the host control computer (RCU).
- Applications: Suitable for industrial automation and process control.
- Input/Output Types: Configurable as digital input or output channels, and relay channels with normally closed (NC) or normally open (NO) contacts.
- Protection: Over-voltage protection, short-circuit protection on solid-state output channels, and galvanic isolation for communication ports.
- Diagnostics: Extensive module diagnostics, including line fault detection and self-testing features.
Technical Specifications
- Input Supply Voltage: 24 VDC (18-31.2 V)
- Power Consumption: 8 W typical
Digital Input (DI)
- Loop voltage: 24 VDC
- Max input voltage: 30 VDC
- Max input signal frequency: 10 ms pulses
- Input loop current: Max. 4 mA @ 24 VDC
- Channel “Off” current: < 0.5 mA
- Channel “On” current: > 3 mA
Digital Output (DO)
- Loop voltage: 24 VDC
- Loop output: 1 A, short circuit protected “High Side Driver”
- Loop driver trip current: > 1.4 A (reset by command)
- Loop monitor current: Max. 2 mA @ 24 VDC
- Loop driver Off leakage: Max. 0.1 mA @ 24 VDC
Relay Channels
- DC load: 15 to 300 VDC, min. 100 mA, max 5 A at Cos φ = 1
- AC load: 15 to 250 VAC, max 2 A recommended at Cos φ = 0.4
- Breaking capability: 0.1 A: 300 V, 0.3 A: 60 V, 5 A: 24 V
Environmental Specifications
- Operating temperature: -15°C to +70°C
- Storage temperature: -25°C to +70°C
- Humidity: Up to 98% RH
- Protection standards: IP20 (IEC 60529)
- Dimensions: 355 x 158 x 87 mm
- Weight: 1.35 kg
