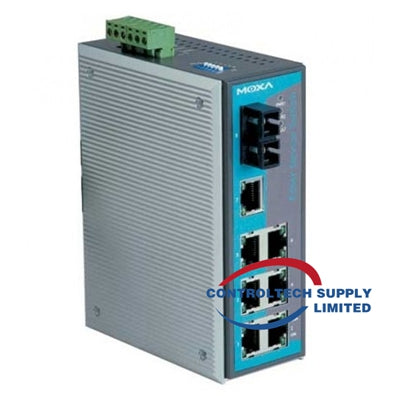

MOXA EDS-308-MM-SC Unmanaged Ethernet Switch

Product Description

The EDS-308-MM-SC is an unmanaged Ethernet switch designed for industrial applications, featuring 6 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports with SC connectors. This switch ensures reliable network connectivity in harsh environments, making it ideal for factory automation, transportation, and energy systems.

Technical Specifications

Ethernet Interface:

• 10/100BaseT(X) Ports (RJ45): 6
  • Auto negotiation speed
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection
• 100BaseFX Ports (multi-mode SC): 2

Standards:

• IEEE 802.3 for 10BaseT
• IEEE 802.3u for 100BaseT(X) and 100BaseFX
• IEEE 802.3x for flow control

Switch Properties:

• MAC Table Size: 2 K
• Packet Buffer Size: 768 Kbits
• Processing Type: Store and Forward

Power Parameters:

• Input Voltage: Redundant dual inputs, 12/24/48 VDC
• Operating Voltage: 9.6 to 60 VDC
• Input Current: 0.15 A @ 24 VDC
• Connection: 1 removable 6-contact terminal block
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics:

• Housing: Metal
• IP Rating: IP30
• Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
• Weight: 790 g (1.75 lb)
• Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits:

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
