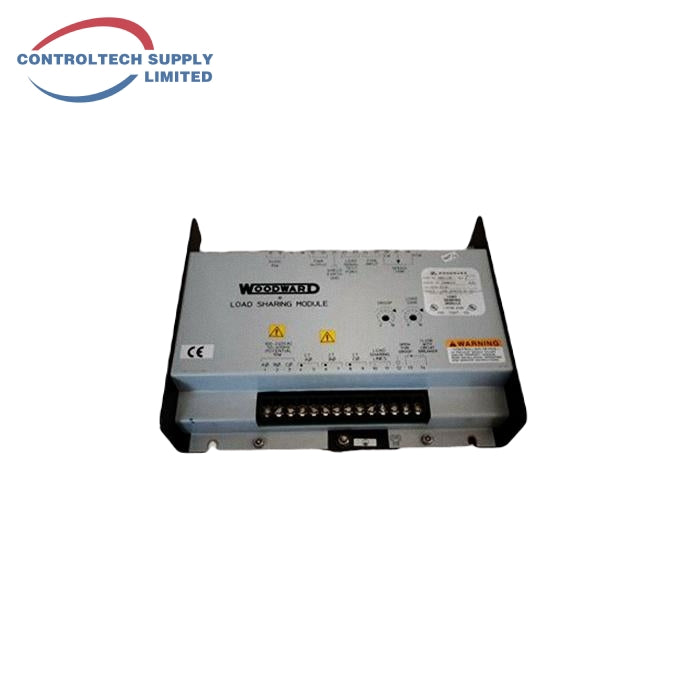

Woodward 9907-175 Load Sharing Module In Stock

This unit is designated as the Woodward 9907-175 model Load Sharing Module. Its main function is to allow the integration of Woodward power accessories and allows the load sharing to be split between the Caterpillar speed controller and the engines controlled by Woodward components. The 9907-175 unit is outfitted with a power supply that ranges from 18 to 32 V/DC, or approximately 5 Watts. This unit is rated with protective measures for both under-voltage and overvoltage past 80 V/DC, and even reverse voltage to negative 32 V/DC.The 9907-175 model comes with three-phase PT inputs, outfitted to operate line to line at 100 to 240 V/AC.

The PT input burden is between 1.5 and 1.7 VA, per phase at 240 V/AC and between 0.4 and 0.5 VA per phase at 120 V/AC.This unit’s standard dimensions give it a length of 273.6 mm (10.8 inches), a width of 214.1 mm (8.4 inches), and a height of 59.2 mm (2.3 inches). It has a tough beige exterior. However, it should not be used in such places where humidity and dust easily occur. AX Control Inc. is able to buy many factory parts in addition we are well suited to sell, fix, as well as resell all parts that come into our possession.

Technical Specifications
